Product Summary

The H1260NLT is a 10/100 base-t transformer module with poe option and 1:1 turns ratios.

Parametrics

H1260NLT Specifications: (1)Insertion Loss(dB MAX) 0.1MHz: -1.1; 100 MHz: -1.1; (2)Return Loss(Z out=100 Ω±15%): 30 MHz: -16; 60 MHz: -10; 80 MHz: -10; (3)DCrosstalk(adjacent channels dB MIN): 30 MHz: -35; 60 MHz: -30; 100 MHz: -30; (4)Hipot (Vrms MIN): 1500.

Features

H1260NLT features: (1)RoHS peak reflow temperature rating 245℃; (2)Meets IEEE 802.3 specification; (3)Compact footprint.

Diagrams

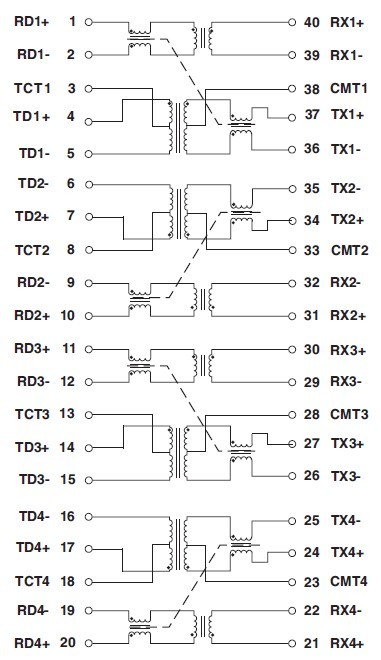

H1260NLT diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
H1260NLT
H1260NLT

Pulse

Transformers Audio & Signal XFMR SIM TO H1102

Data Sheet

0-310: $1.63
310-500: $1.37
500-600: $1.37
600-1000: $1.32
