Product Summary

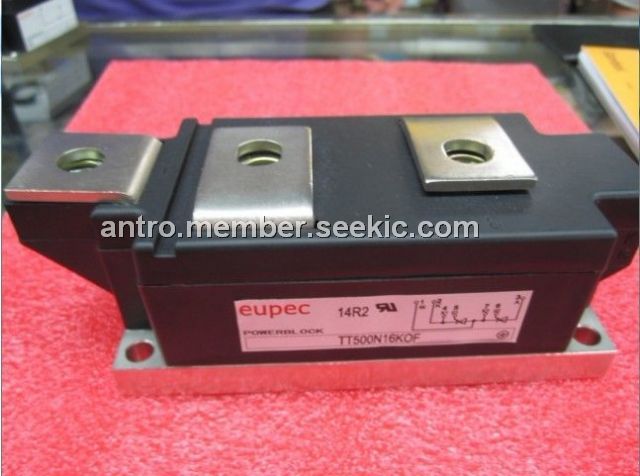

The TT500N16KOF is a kind of phase control thyristor module. The module can be used individually or as power control building blocks. The TT500N16KOF high thermal efficiency assures long life and reliable performance. Six different package sizes allow for a maximum output current of 570 amps for standard scr modules and 200 amps for fast switching versions. Blocking voltages are available as high as 3600 volts for standard scr and 1300 volts for fast switching modules. Switching times are as low as 18 microseconds.

Parametrics

TT500N16KOF maximum rated values: (1)repetitive peak forward off-state and reverse voltages, VDRM, VRRM: 1200 V at Tvj = -40℃ and 1400 V at Tvj =Tvj max; (2)non-repetitive peak forward off-state voltage, VDSM: 1200 V at Tvj = -40℃ and 1400 V at Tvj =Tvj max; (3)non-repetitive peak reverse voltage, VRSM: 1300 V at Tvj = +25℃ and 1500 V at Tvj =Tvj max; (4)maximum RMS on-state current, ITRMSM: 900 A; (5)average on-state current, ITAVM: 500 A at TC = 85 and 573 A at TC = 77℃; (6)surge current, ITSM: 17000 A at Tvj = 25 ℃, tP = 10 ms and 14500 A at Tvj = Tvj max, tP = 10 ms; (7)I2t-value, I2T: 1445000 A2S at Tvj = 25 ℃, tP = 10 ms and 1051000 A2S at Tvj = Tvj max, tP = 10 ms; (8)critical rate of rise of on-state current, (diT/dt)cr: 200 A/μs at DIN IEC 747-6 f = 50 Hz, iGM = 1 A, diG/dt = 1 A/μs; (9)critical rate of rise of off-state voltage, (dvD/dt)cr: 1000 V/μs at Tvj = Tvj max, vD = 0,67 VDRM 6.Kennbuchstabe / 6th letter F.

Features

TT500N16KOF features: (1)Three Standard SCR/SCR Circuits; (2)Blocking Voltages to 3600 Volts; (3)High Thermal Efficiency; (4)2500 Vrms Isolation; (5)Industry Standard Packages.

Diagrams

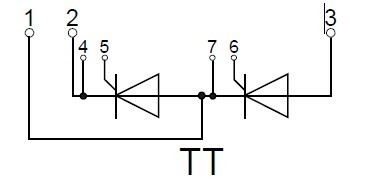

TT500N16KOF circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TT500N16KOF
TT500N16KOF

Infineon Technologies

Discrete Semiconductor Modules 1600V 900A DUAL

Data Sheet

0-1: $263.68
1-5: $237.31
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TT500N
TT500N

Other


Data Sheet

Negotiable
TT500N08KOF
TT500N08KOF

Infineon Technologies

SCR Modules PHASE CONTROL THYRISTOR MODULE

Data Sheet

0-3: $232.31
3-10: $209.06
TT500N12KOF
TT500N12KOF

Infineon Technologies

Discrete Semiconductor Modules 1200V 900A DUAL

Data Sheet

0-3: $239.09
3-10: $215.18
TT500N14KOF
TT500N14KOF

Infineon Technologies

Discrete Semiconductor Modules 1400V 900A DUAL

Data Sheet

0-3: $250.61
3-10: $225.55
TT500N16KOF
TT500N16KOF

Infineon Technologies

Discrete Semiconductor Modules 1600V 900A DUAL

Data Sheet

0-1: $263.68
1-5: $237.31
TT500N16KOG
TT500N16KOG

Infineon Technologies

SCR Modules PHASE CONTROL THYRISTOR MODULE

Data Sheet

0-3: $286.68
3-10: $258.00
