Product Summary

The DDB6U215N16L is a Netz-Dioden-Modul Rectifier Diode Module.

Parametrics

DDB6U215N16L absolute maximum ratings: (1)repetitive peak reverse voltage: 1600, 1800 V; (2)non-repetitive peak reverse voltage: 1700, 1900 V; (3)IFRMSM: 125 A; (4)output current: 93 A; (5)surge forward current Tvj = Tvj max, tp = 10ms: 1950 A; (6)I2t-value Tvj = Tvj max, tp = 10ms: 19000 A2s.

Features

DDB6U215N16L features: (1)forward voltage: 1.61V; (2)threshold voltage: 0,75 V; (3)forward slope resistance: 1,6 mW; (4)reverse current: 10 mA; (5)insulation test voltage RMS, f = 50Hz, t = 1sec: 3,6 kV.

Diagrams

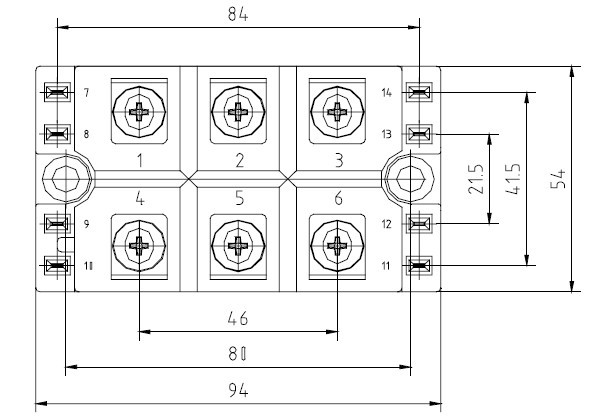

DDB6U215N16L diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DDB6U215N16L
DDB6U215N16L

Infineon Technologies

Discrete Semiconductor Modules 1600V 215A UN-CNTL

Data Sheet

0-1: $77.88
1-10: $70.09
