Product Summary

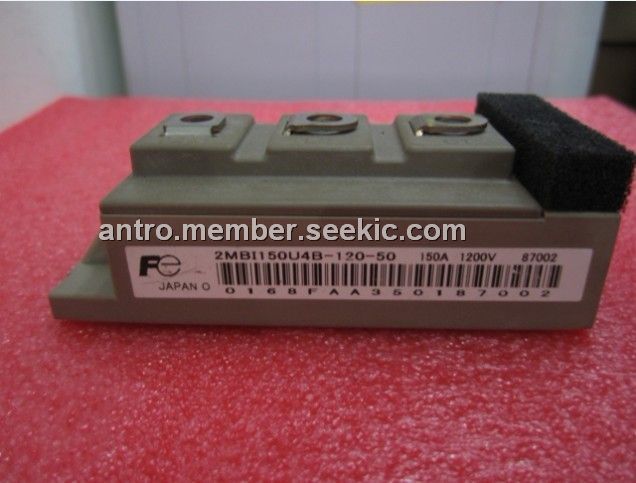

The 2MBI150U4B-120-50 is an IGBT Module, which is designed for Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply and Industrial machines, such as Welding machines.

Parametrics

2MBI150U4B-120-50 absolute maximum ratings: (1)Collector-emitter voltage: 1200 V; (2)Gate-emitter voltage: ±20 V; (3)Collector current: 200 A; (4)Forward current: 150 A; (5)Collector power dissipation (Tc = 25℃): 780 W; (6)Junction temperature: +150 ℃; (7)Storage temperature range: -40 ~ 125 ℃; (8)Isolation voltage: 2500 (AC 1 min.) V; (9)Screw torque (Terminal / mounting): 3.5 N·m.

Features

2MBI150U4B-120-50 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

2MBI150U4B-120-50 equivalent circuit diagram
