Product Summary

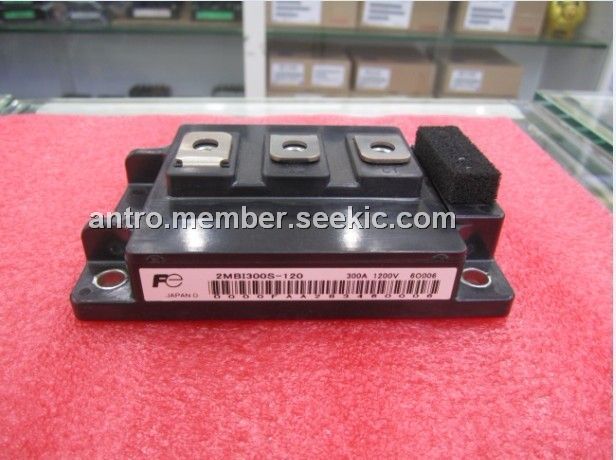

The 2MBI300S-120 is an IGBT module. The applications of the device include Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply and Industrial machines, such as Welding machines.

Parametrics

2MBI300S-120 absolute maximum ratings: (1)Collector-Emitter voltage, VCES: 1200V; (2)Gate-Emitter voltage, VGES: ±20V; (3)Collector current Continuous, Tc=25℃, IC: 400A; Tc=80℃: 300A; 1ms, Tc=25℃, IC pulse: 800A; Tc=80℃: 600A; -IC: 300A; 1ms -IC pulse: 600A; (4)Max. power dissipation, PC: 2500mW; (5)Operating temperature, Tj: 150℃; (6)Storage temperature, Tstg: -40 to 125℃; (7)Isolation voltage, Vis: AC 2500V.

Features

2MBI300S-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.

Diagrams

2MBI300S-120 equivalent circuit
