S1D13700F01A1

Memory Graphics LCD Controller, 3.0 to 3.6 volts, 60 MHz, S1D13700F01A1

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.50~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $7.50~10.00

PartNumber:: S1D13700F01A1

Brand:: Epson ToYoCom - EPSON | Pack: QFP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-16

From Other Seller

Part Number:S1D13700F01A1
US $7.50 - 10.00
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
CM2030-A0TR

US $0.92 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

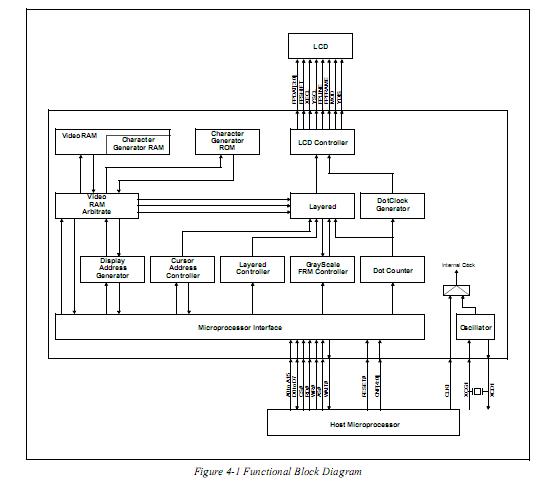

The S1D13700F01A1 is an Embedded Memory Graphics LCD Controller. It can display both text and graphics on an LCD panel. The S1D13700F01A1 allows layered text and graphics, scrolling of the display in any direction, and partitioning of the display into multiple screens. It includes 32K bytes of embedded SRAM display memory which is used to store text, character codes, and bit-mapped graphics. The S1D13700F01A1 is designed with an internal character generator which supports 160, 5x7 pixel characters in internal mask ROM (CGROM) and 64, 8x8 pixel characters in character generator RAM (CGRAM).

Parametrics

S1D13700F01A1 absolute maximum ratings: (1)Supply Voltage:VSS - 0.3 to 4.0V; (2)Supply Voltage:VSS - 0.3 to 7.0V; (3)Input Voltage:VSS - 0.3 to IO VDD + 0.5V; (4)Output Voltage:VSS - 0.3 to IO VDD + 0.5V; (5)Storage Temperature:-65℃ to 150℃; (6)Solder Temperature/Time:260℃ for 10 sec. max at lead.
