Product Summary

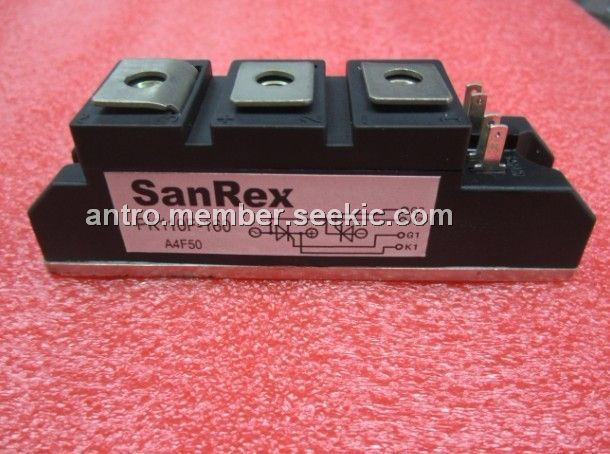

The Power Thyristor/Diode Module PK110F-160 is designed for various rectifier circuits and power controls. For your circuit application following internal connections and wide voltage ratings up to 1,600V are available. Two elements in a package and electrically isolated mounting base make your mechanical design easy.

Parametrics

PK110F-160 absolute maximum ratings: (1)VRRM, Repetitive Peak Reverse Voltage: 1600 V; (2)VRSM, Non-Repetitive Peak Reverse Voltage: 1700V; (3)VDRM, Repetitive Peak Off-State Voltage: 1600V.

Features

PK110F-160 features: (1)IT(AV)110A, IT(RMS)172A, ITSM 2550A; (2)di/dt 200 A/ s; (3)dv/dt 500V/ s.

Diagrams

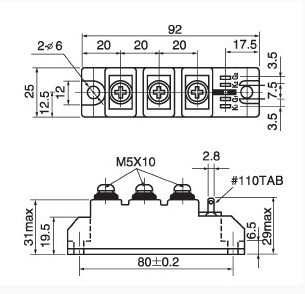

PK110F-160 diagram
