Product Summary

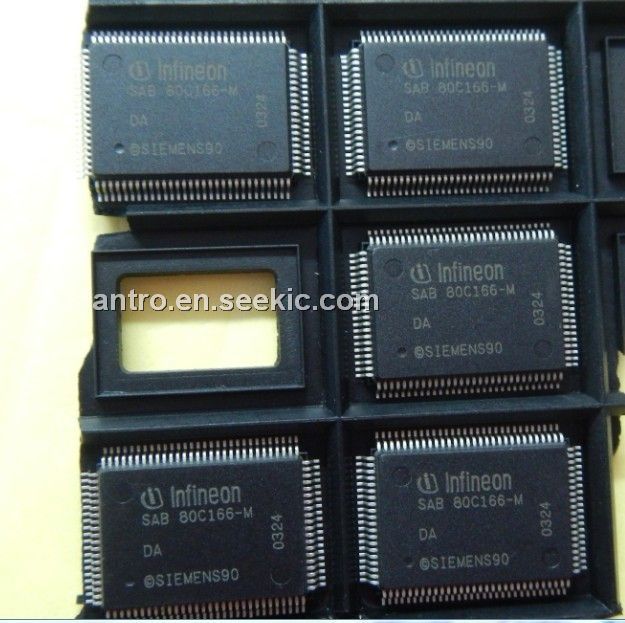

The SAB80C166-M is a 16-bit CMOS single-chip microcontroller.
Parametrics
SAB80C166-M absolute maximum ratings: (1)ambient temperature under bias: 0 to 70℃; (2)storage temperature: -65 to 150℃; (3)voltage on VCC pins with respect to ground: -0.5 to 6.5V; (4)voltage on any pin with respect to ground: -0.5 to VCC+0.5V; (5)Input current on any pin during overload condition: -10 to 10A; (6)absolute sum of all input currents during overload condition: 100mA; (7)power dissipation: 1W.
Features
SAB80C166-M features: (1)High Performance 16-bit CPU with 4-Stage Pipeline; (2)100 ns Instruction Cycle Time at 20 MHz CPU Clock; (3)500 ns Multiplication (16 × 16 bit), 1 µs Division (32 / 16 bit); (4)Enhanced Boolean Bit Manipulation Facilities; (5)Register-Based Design with Multiple Variable Register Banks; (6)Single-Cycle Context Switching Support; (7)Up to 256 KBytes Linear Address Space for Code and Data; (8)1 KByte On-Chip RAM.
Diagrams
