Product Summary

The FZ1200R33KF2C is an IGBT-wechselrichter.

Parametrics

FZ1200R33KF2C absolute maximum ratings: (1)Kollektor emitter sperrspannung, VCES: 3300V; (2)Kollektor daurgleichstrom, ICnom: 1200A; (3)DC collector current, IC: 2000A; (4)Periodischer kollektor spitzenstrom, ICRM: 2400A; (5)Gate emitter spitzenspannung, VGES: +/-20V.

Features

FZ1200R33KF2C features: (1)Isolation prufspannung 6.0kV; (2)Teilentiadungs aussetzespannung partial discharge extinction voltage, 2.6kV; (3)Kollektor emitter gleichsperrsannung DC stability: 1800V; (4)Material modulgrundplatte material of module baseplate AISic.

Diagrams

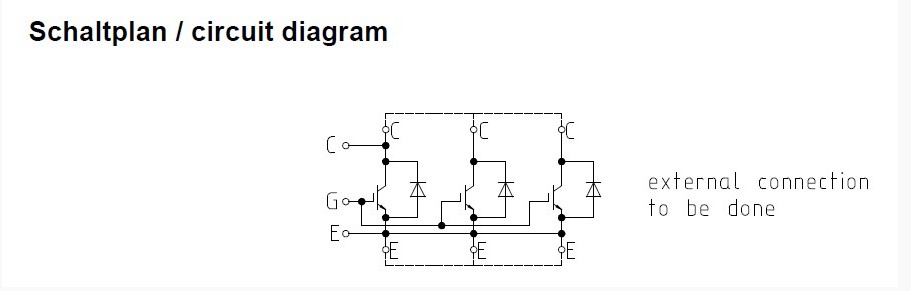

FZ1200R33KF2C circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

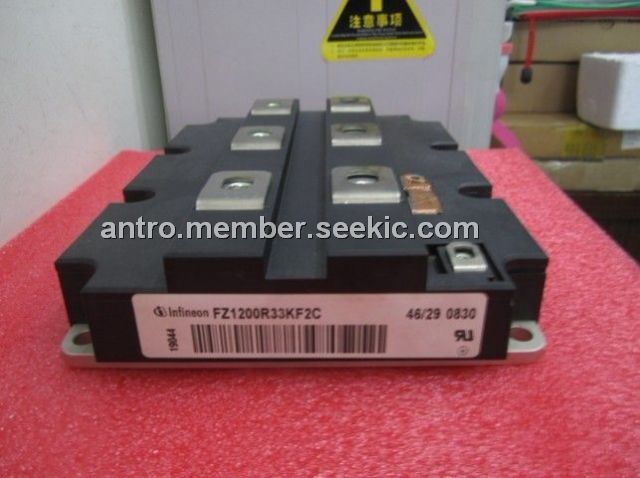

FZ1200R33KF2C
FZ1200R33KF2C
Infineon Technologies
IGBT Transistors 3300V 1200A SINGLE
Data Sheet
0-1: $1,252.51
1-3: $1,184.08
3-5: $1,048.65
