Product Summary
The P1403EVG is a P-Channel logic level enhancement mode field effect transisor.
Parametrics
P1403EVG absolute maximum ratings: (1)drain-source voltage: -30V; (2)gate-source voltage: ±25V; (3)continuous drain current: -11A; (4)pulsed drain current: -50A; (5)avalanche energy: 90mJ; (6)operating junction&storage temperature range: -55 to 150℃.
Features
P1403EVG features: (1)drain-source breakdown voltage: -30V; (2)gate threshold voltage: -3V; (3)zero gate voltage drain current: -10μA; (4)drain-source on-state resistance: 14mΩ.

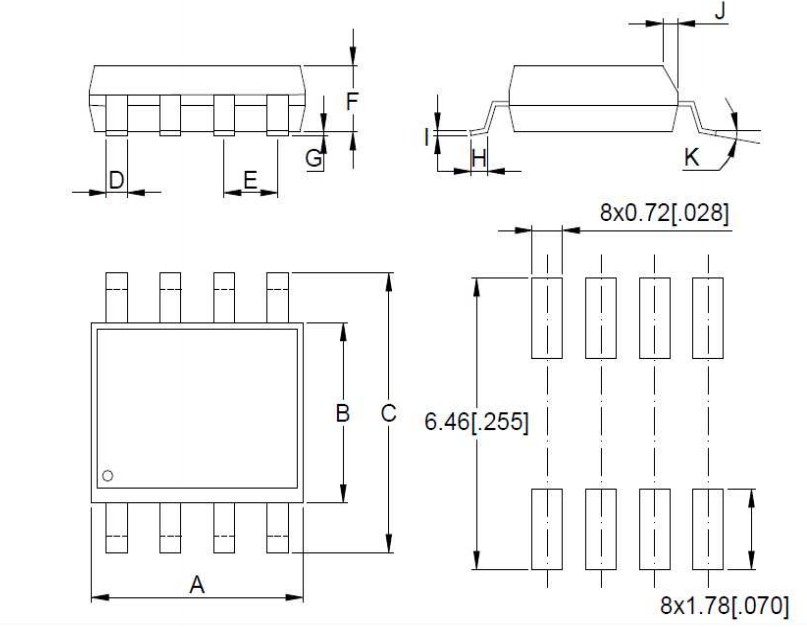

Diagrams
