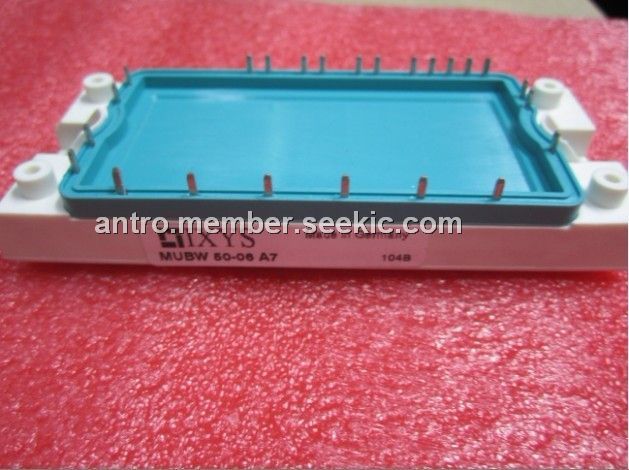

The MUBW 50-06 A7 is the converter-Brake inverter module which is widely used in electric braking operation and so on.
Parametrics
MUBW 50-06 A7 absolute maximum ratings: (1)VCES, TVJ = 25 to 150℃: 600 V; (2)VGES, Continuous: ± 20 V; (3)IC25, TC = 25℃: 75 A; (4)IC80, TC = 80℃: 50 A; (5)ICM, VGE = ±15 V; RG = 47 Ω; TVJ = 125℃: 40 A; (6)VCEK, RBSOA; Clamped inductive load;L = 100 μH: VCEK≤ VCES; (7)t SC(SCSOA), VCE= VCES; VGE = ±15 V; RG = 47Ω; TVJ = 125℃: 10 μs; (8)Ptot, TC = 25℃: 125 W.
Features
MUBW 50-06 A7 features: (1)High level of integration - only one power semiconductor module; (2)required for the whole drive; (3)IGBT technology with low saturation voltage, low switching losses and tail current, high RBSOA and short circuit ruggedness; (4)Epitaxial free wheeling diodes with Hiperfast and soft reverse recovery; (5)Industry standard package with insulated copper base plate and; (6)soldering pins for PCB mounting; (7)Temperature sense included.
