Product Summary

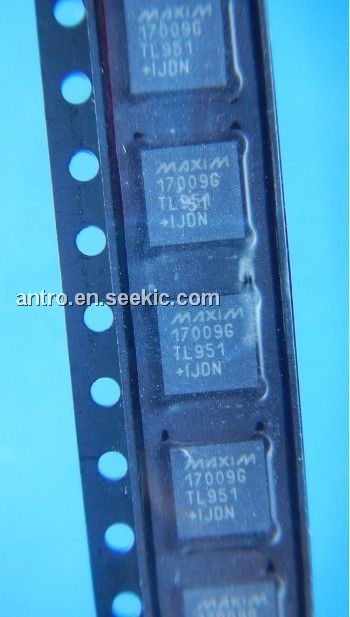

The MAX17009GTL is an AMD mobile serial VID dual-phase fixed-frequency controller. It is fully AMD SVI compliant. Output voltages are dynamically changed through a 2-wire serial interface, allowing the switching regulator and the reference buffer to be individually programmed to different voltages. Its applications include Mobile AMD SVI Core Supply, Multiphase CPU Core Supply, Voltage-Positioned, Step-Down Converters, Notebook/Desktop Computers.
Parametrics
MAX17009GTL absolute maximum ratings: (1)LX1 to BST1: -6 to 0.3V; (2)continuous power: 2857mW; (3)operating temperature range: -40 to 106℃; (4)storage temperature range: -65 to 150℃; (5)lead temperature: 300℃; (6)BST1, BST2 to GND: -0.3 to 36V.
Features
MAX17009GTL features: (1)Dual-Output, Fixed-Frequency, Core Supply Controller; (2)Separate or Combinable Outputs Detected at Power-Up; (3)Reference Buffer Output for NB Controller; (4)±0.4% VOUT Accuracy Over Line, Load, and Temperature; (5)AMD SVI-Compliant Serial Interface; (6)7-Bit On-Board DAC: 0 to +1.550V Output Adjust Range; (7)Dynamic Phase Selection Optimizes Active/Sleep Efficiency.

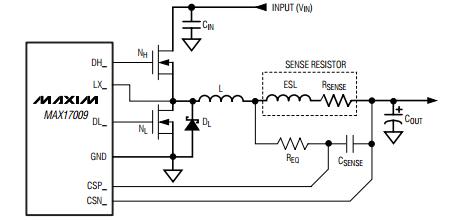

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX17009GTL+ |
Maxim Integrated Products |
Other Power Management AMD Dual-Phase CPU Controller |
Data Sheet |
|
|
||||||||
 |
MAX17009GTL+T |
Maxim Integrated Products |
Other Power Management AMD Dual-Phase CPU Controller |
Data Sheet |
|
|
||||||||
