Product Summary

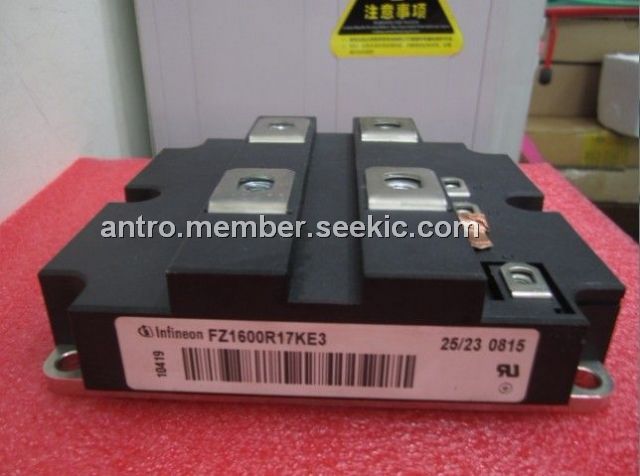

The FZ1600R17KE3 is the IGBT-inverter.

Parametrics

FZ1600R17KE3 absolute maximum ratings: (1)Collektor emitter sperrspannung, VCES: 1700V; (2)Kollektor daurgleichstrom, ICnom: 1600A; (3)DC collector current, IC: 2300A; (4)Periodischer kollektor spitzenstrom, ICRM: 3200A; (5)Gate emitter spitzenspannung, VGES: +/-20V.

Features

FZ1600R17KE3 specifications: (1)Isolation prufspannung 3.4kV; (2)Creepage distance: 32.0 mm; (3)Clearance distance: 19.0 mm; (4)Thermal resistance, case to heatsink: 6,00 K/kw; (5)Maximum junction temperature: 150℃.

Diagrams

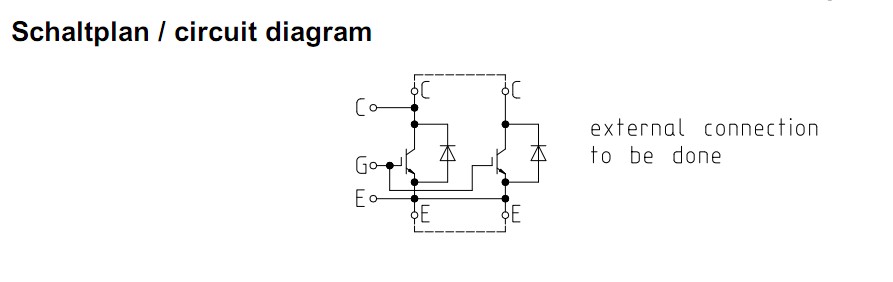

FZ1600R17KE3 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FZ1600R17KE3
FZ1600R17KE3

Infineon Technologies

IGBT Modules N-CH 1.7KV 2.3KA

Data Sheet

0-2: $710.74
2-10: $639.64
FZ1600R17KE3_B2
FZ1600R17KE3_B2

Infineon Technologies

IGBT Modules N-CH 1.7KV 2.4KA

Data Sheet

0-2: $839.22
