AD780ARZ-REEL7

2.5/3.0V, 8SOIC, ultrahigh precision bandgap, 500mW, 1mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~2.00

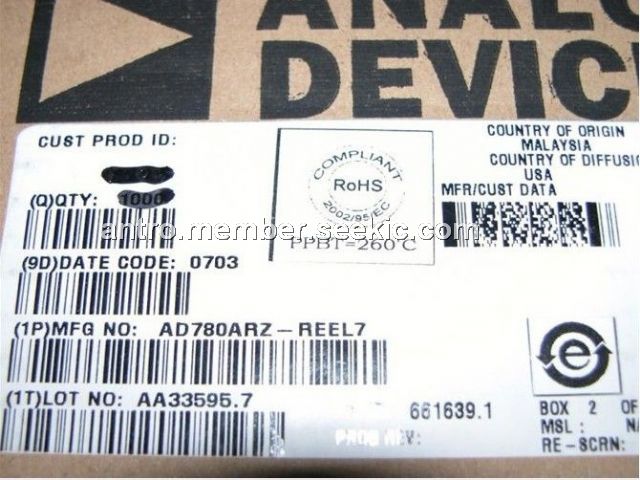

PartNumber:: AD780ARZ-REEL7

Brand:: Analog Devices - ADI | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Ella's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-01-23

From Other Seller

Part Number:AD780ARZ-REEL7
US $0.10 - 2.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The AD780ARZ-REEL7-REEL7 is an ultrahigh precision bandgap reference voltage which provides a 2.5 V or 3.0 V output from inputs between 4.0 V and 36 V. Low initial error and temperature drift combined with low output noise and the ability to drive any value of capacitance make the AD780ARZ-REEL7 the ideal choice for enhancing the performance of high resolution ADCs and DACs and for any general purpose precision reference application. A unique low headroom design facilitates a 3.0 V output from a 5.0 V ± 10% input, providing a 20% boost to the dynamic range of an ADC, over performance with existing 2.5 V references. The AD780ARZ-REEL7 can be used to source or sink up to 10 mA and can be used in series or shunt mode, thus allowing positive or negative output voltages without external components. This makes it suitable for virtually any high performance reference application. Unlike some competing references, the AD780ARZ-REEL7 has no region of possible instability. The part is stable under all load conditions when a 1 μF bypass capacitor is used on the supply.

Parametrics

AD780ARZ-REEL7 absolute maximum ratings: (1)VIN to Ground: 36 V; (2)Trim Pin to Ground: 36 V; (3)Temp Pin to Ground: 36 V; (4)Power Dissipation (25℃): 500 mW; (5)Storage Temperature: –65℃ to +150℃; (6)Lead Temperature (Soldering, 10 sec): 300℃; (7)Output Protection: Output safe for indefinite short to ground and momentary short to VIN; (8)ESD Classification: Class 1 (1000 V).

Features

AD780ARZ-REEL7 features: (1)Pin-Programmable 2.5 V or 3.0 V Output; (2)Ultralow Drift: 3 ppm/℃ max; (3)High Accuracy: 2.5 V or 3.0 V ± 1 mV max; (4)Low Noise: 100 nV/√Hz; (5)Noise Reduction Capability; (6)Low Quiescent Current: 1 mA max; (7)Output Trim Capability; (8)Plug-In Upgrade for Present References; (9)Temperature Output Pin; (10)Series or Shunt Mode Operation (±2.5 V, ±3.0 V).
