Product Summary

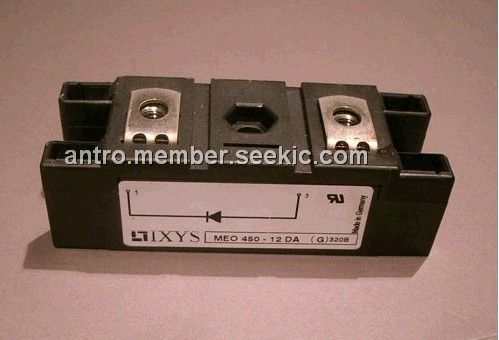

The MEO450-12DA is a Fast Recovery Epitaxial Diode Module. The applications of the MEO450-12DA are: (1)Antiparallel diode for high frequency switching devices; (2)Free wheeling diode in converters and motor control circuits; (3)Inductive heating and melting; (4)Uninterruptible power supplies (UPS); (5)Ultrasonic cleaners and welders.
Parametrics
MEO450-12DA absolute maximum ratings: (1)IFRMS: 640A; (2)IFAVM: 453A; (3)IFRM: 2460A; (4)TVJ: -40 to 150℃; (5)Tstg: -40 to 125℃; (6)TSmax: 110℃; (7)Ptot Tc = 25℃: 1750W; (8)VISOL: 3000V.
Features
MEO450-12DA features: (1)International standard package JEDEC TO-240 AA; (2)Direct copper bonded Al2O3-ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V; (5)UL registered, E 72873.

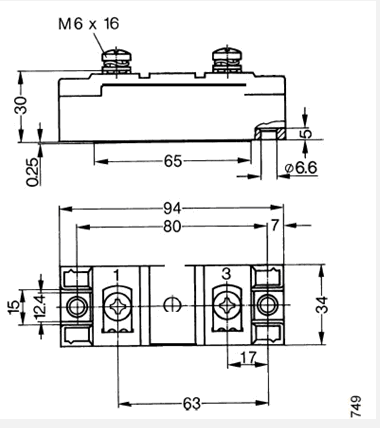

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MEO450-12DA |
Ixys |
Discrete Semiconductor Modules 450 Amps 1200V |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
MEO450-12DA |
Ixys |
Discrete Semiconductor Modules 450 Amps 1200V |
Data Sheet |
Negotiable |
|
||||
