Product Summary

The 7MBR100U4B120-50 is a Power Integrated Module.

Parametrics

7MBR100U4B120-50 absolute maximum ratings: (1)Collector-Emitter voltage: 1200V; (2)Gate-Emitter voltage: ±20V; (3)Collector current: 100A; (4)Collector Power Dissipation: 390W; (5)Gate-Emitter voltage VGES: ±20V; (6)Repetitive peak reverse Voltage (Diode): 1200 V; (7)Collector Power Dissipation Pc 1 device: 205W; (8)Average Output Current: 100A; (9)Repetitive peak reverse Voltage VRRM: 1600V; (10)I2t (Non-Repetitive) I2t: 1352A2s.

Features

7MBR100U4B120-50 features: (1)The module should be stored at a standard temperature of 5 to 35℃ and humidity of 45 to 75%; (2)Store modules in a place with few temperature changes in order to avoid condensation on the module surface; (3)Avoid exposure to corrosive gases and dust; (4)Avoid excessive external force on the module; (5)Store modules with unprocessed terminals; (6)Do not drop or otherwise shock the modules when transporting.

Diagrams

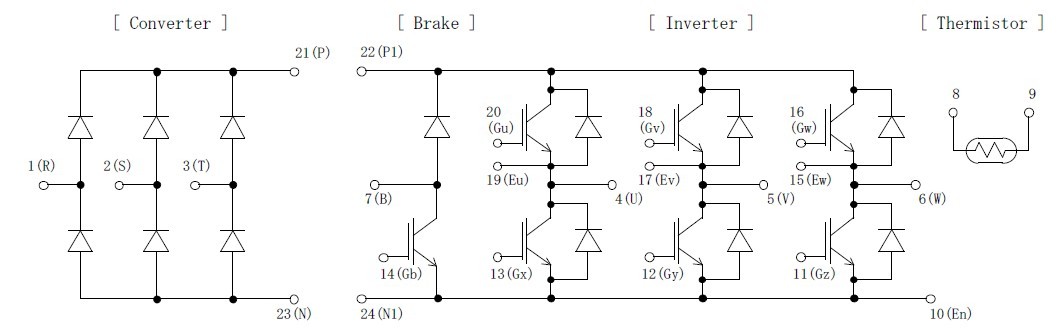

7MBR100U4B120-50 Equivalent circuit
