Product Summary
The HMC252 is a low-cost non-reflective SP6T switch in 24-lead QSOP packages featuring wideband operation from DC to 3.0 GHz. The HMC252 offers a single positive bias and true TTL/CMOS compatibility. A 3:6 decoder is integrated on the switch requiring only 3 control lines and a positive bias to select each path. The applications of the HMC252 are Base Station, CATV / DBS, MMDS & WirelessLAN, Test Equipment.
Parametrics
HMC252 absolute maximum ratings: (1)Bias Voltage Range (Port Vdd):+7.0 Vdc; (2)Control Voltage Range (A, B, C):-0.5V to Vdd +1 Vdc; (3)Channel Temperature:150℃; (4)Thermal Resistance(Insertion Loss Path):240℃/W; (5)Thermal Resistance(Terminated Path):260℃/W; (6)Storage Temperature:-65℃ to +150℃; (7)Operating Temperature:-40℃ to +85℃; (8)Maximum Input Power, Vdd = +5 Vdc:+20 dBm (0.05 to 0.5 GHz), +26 dBm (0.5 to 3.0 GHz).
Features
HMC252 features: (1)Low Insertion Loss (2 GHz): 0.9 dB; (2)Single Positive Supply: Vdd = +5V; (3)Integrated 3:6 TTL Decoder; (4)24 Lead QSOP Package.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

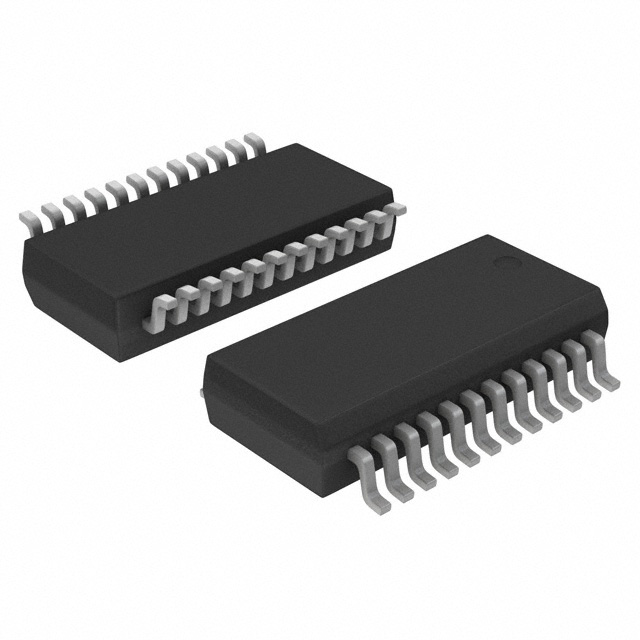

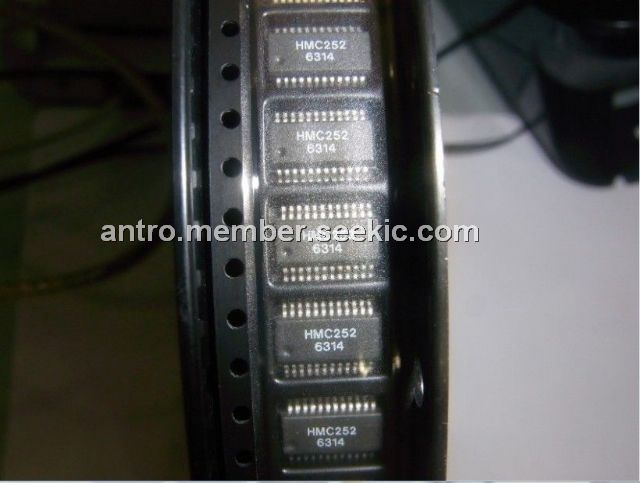

HMC252QS24E |
IC MMIC GAAS SW SP6T 24QSOP |
Data Sheet |
|
|
||||||||||||||||
HMC252QS24 |
Other |
Data Sheet |
Negotiable |
|
