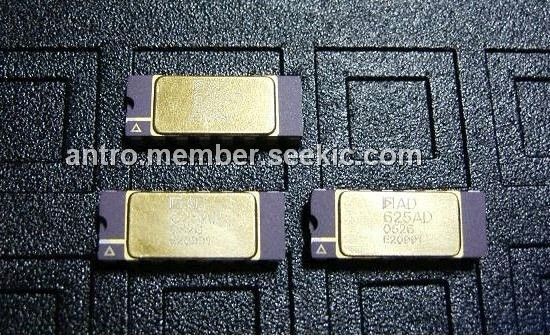

Product Summary
The AD625AD is a precision instrumentation amplifier specifically designed to fulfill two major areas of application: 1) Circuits requiring nonstandard gains (i.e., gains not easily achievable with devices such as the AD524 and AD624). 2) Circuits requiring a low cost, precision software programmable gain amplifier. For low noise, high CMRR, and low drift the AD625AD is the most cost effective instrumentation amplifier solution available. The AD625AD is available in three accuracy grades (A, B, C) for industrial (–40℃ to +85℃) temperature range, two grades (J, K) for commercial (0℃ to +70℃) temperature range, and one (S) grade rated over the extended (–55℃ to +125℃) temperature range.
Parametrics
AD625AD absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation: 450 mW; (3)Input Voltage: ±VS; (4)Differential Input Voltage: ±VS; (5)Output Short Circuit Duration: Indefinite; (6)Storage Temperature Range (D, E): –65℃ to +150℃; (7)Storage Temperature Range (N): –65℃ to +125℃; (8)Operating Temperature Range: –40℃ to +85℃; (9)Lead Temperature Range (Soldering 10 sec): +300℃.
Features
AD625AD features: (1)User Programmed Gains of 1 to 10,000; (2)Low Gain Error: 0.02% Max; (3)Low Gain TC: 5 ppm/℃ Max; (4)Low Nonlinearity: 0.001% Max; (5)Low Offset Voltage: 25 μV; (6)Low Noise 4 nV/√Hz (at 1 kHz) RTI; (7)Gain Bandwidth Product: 25 MHz; (8)16-Lead Ceramic or Plastic DIP Package, 20-Terminal LCC Package; (9)Standard Military Drawing Available; (10)MlL-Standard Parts Available; (11)Low Cost.

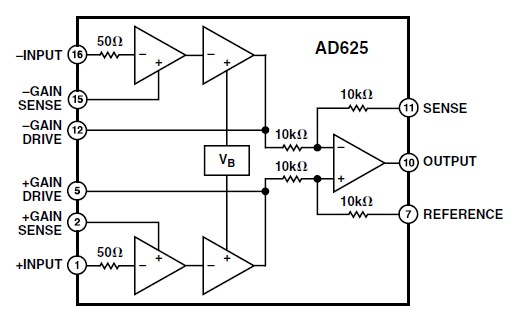

Diagrams
