Product Summary

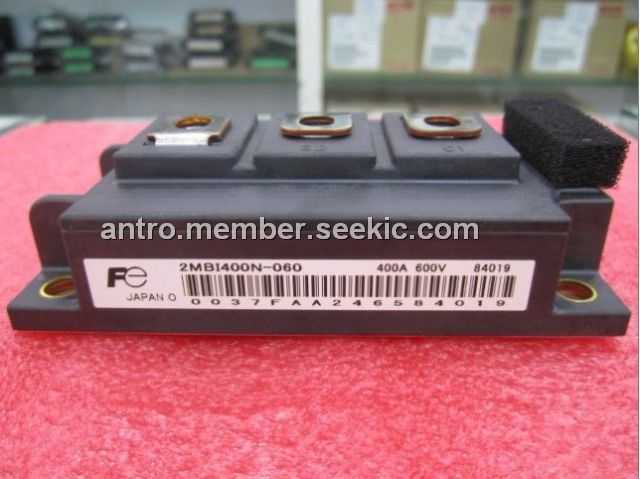

The 2MBI400N-060 is an IGBT module. The applications of it are High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.
Parametrics
2MBI400N-060 absolute maximum ratings: (1)Collector-Emitter Voltage:600 V; (2)Gate-Emitter Voltage:±20 V; (3)Collector current: IC at continuous:400A, ICpulse at 1ms:800A, -IC at continuous:400A, -ICpulse at 1ms:800A; (4)Max. Power Dissipation:1500 W; (5)Operating Temperature:+150℃; (6)Storage Temperature:-40℃ to +125℃; (7)Isolation Voltage:2500 V; (8)Screw Torque: mounting: 3.5 Nm; terminals: 4.5Nm.
Features
2MBI400N-060 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (~3 Times Rated Current).

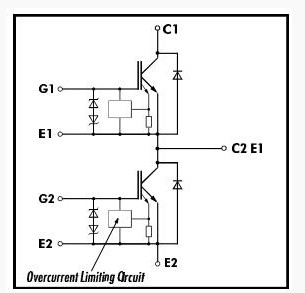

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI400N-060 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2MBI400N-060-01 |
Other |
|
Data Sheet |
Negotiable |
|
||||
