Product Summary
The MAX202CSE+T is a 5V RS-232 transceiver. It is designed for RS-232 and V.28 communication interfaces where ±12V supplies are not available. On-board charge pumps convert the +5V input to the Q10V needed for RS-232 output levels. The MAX202CSE+T operates from +5V and +12V, respectively, and contain a +12V to -12V charge-pump voltage converter. The drivers maintain the ±5V EIA/TIA-232E output signal levels at data rates in excess of 120kbps when loaded in accordance with the EIA/TIA-232E specification. Applications of the MAX202CSE+T include: Computers: Laptops, Palmtops, Notebooks; Battery-Powered Equipment; Handheld Equipment.
Parametrics
MAX202CSE+T absolute maximum ratings: (1)VCC: -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: +0.3V to -14V; (4)Input Voltages TIN: -0.3V to (VCC + 0.3V); RIN: ±30V; (5)Output Voltages TOU: (V+ + 0.3V) to (V- - 0.3V); ROUT: -0.3V to (VCC + 0.3V); (6)Short-Circuit Duration TOUT: Continuous; (7)Continuous Power Dissipation (TA = +70℃) 14-Pin Plastic DIP (derate 10.00mW/℃ above +70): 800mW; (8)Operating Temperature Ranges: 0℃ to +70℃; (9)Storage Temperature Range: -65℃ to +160℃; (10)Lead Temperature (soldering, 10s): +300℃.
Features
MAX202CSE+T features: (1)0.1μF to 10μF external capacitors; (2)120kbits/sec data rate; (3)2 receivers active in shutdown mode; (4)small 28-pin SSOP package; (5)low power shutdown current: 1μA; (6)designed for RS-232 and V.28 applications; (7)three state TTL/CMOS receiver outputs.

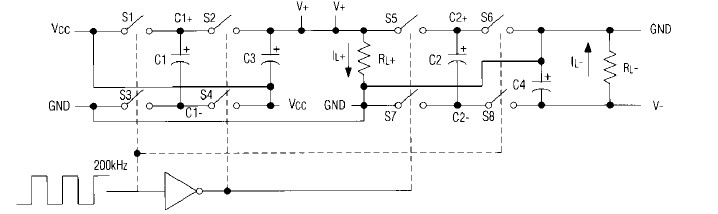

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX202CSE+T |
Maxim Integrated Products |
RS-232 Interface IC 5V RS-232 Tcvr w/0.1uF External Cap |
Data Sheet |
|
|
||||||||||||
