Product Summary

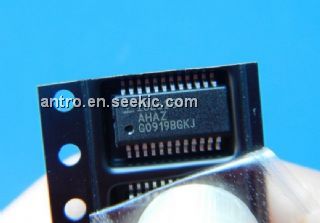

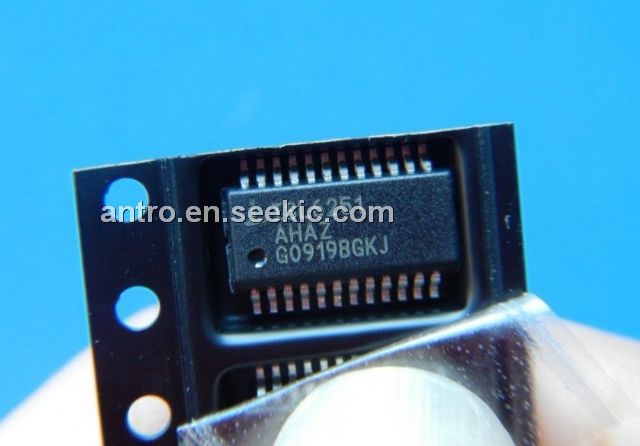

The ISL6251AHAZ is a highly integrated battery charger controller for Li-lon polymer batteries and NiMH batteries. High Efficiency is achieved by a synchronous buck topology and the use of a MOSFET, instead of a diode, for selecting power from the adapter or battery. The low side MOSFET emulates a diode at light loads to improve the light load efficiency and prevent system bus boosting.
Parametrics
ISL6251AHAZ absolute maximum ratings: (1)DCIN: -0.3 to 28V; (2)PHASE to PGND: -7 to 30V; (3)junction temperature range: -10 to 150℃; (4)storage temperature: -65 to 150℃; (7)lead temperature: 300℃.
Features
ISL6251AHAZ features: (1)±0.5% Charge Voltage Accuracy (-10°C to 100°C); (2)±3% Accurate Input Current Limit; (3)±3% Accurate Battery Charge Current Limit; (4)±25% Accurate Battery Trickle Charge Current Limit; (5)Output for Current Drawn from AC Adapter; (6)AC Adapter Present Indicator; (7)Fast Input Current Limit Response; (8)Input Voltage Range 7V to 25V; (9)Support 2, 3 and 4 Cells Battery Pack; (10)Up to 17.64V Battery-Voltage Set Point.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISL6251AHAZ |
|
IC BATTERY CHARGER CTRLR 24-QSOP |
Data Sheet |
|
|
||||||
|
ISL6251AHAZ-T |
|
IC BATTERY CHARGER CTRLR 24-QSOP |
Data Sheet |
|
|
||||||
