Product Summary

The 216MCA4ALA12FG is a two level digital output module. It is based on CIS module, the PI209M-A6 manufactured by PIC, but with a shorter read length of 88 mm. Hence, its performance is equivalent to the PI209M-A6 that uses MOS image sensor technology to gains its highspeed performance and high sensitivity.The 216MCA4ALA12FG is suitable for scanning documents with width of 88 mm and with resolution of 8 dots per millimeter.

Parametrics

216MCA4ALA12FG absolute maximum ratigs: (1)Vdd: 10V; (2)Idd: 100mA; (3)Vn: -10V; (4)VLED: 5.5V; (5)Vih: Vdd-0.5V; (6)Vil: -0.8V.

Features

216MCA4ALA12FG features: (1)light soure, lens, and sensor are integrated into a single module; (2)8 dpm resolution, 88mm scanning length; (3)wide dynamic range; (4)two-level tracking digital output; (5)660nm light source.

Diagrams

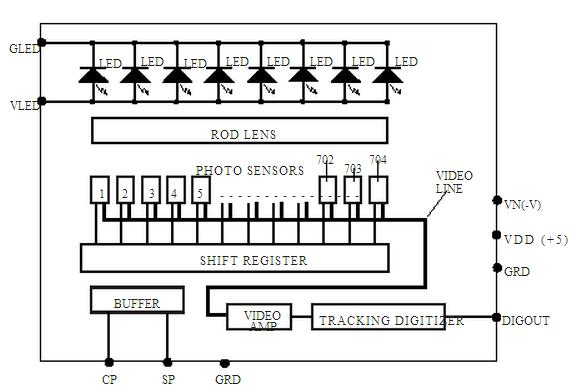

216MCA4ALA12FG block diagram
