Product Summary

The SN74LVC16245ADL is a 16-bit (dual-octal) noninverting bus transceiver. It is designed for 1.65-V to 3.6-V VCC operation. The SN74LVC16245ADL is designed for asynchronous communication between data buses. The control-function implementation minimizes external timing requirements. The SN74LVC16245ADL can be used as two 8-bit transceivers or one 16-bit transceiver. It allows data transmission from the A bus to the B bus or from the B bus to the A bus, depending on the logic level at the direction-control (DIR) input.

Parametrics

SN74LVC16245ADL absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 6.5 V; (2)Input voltage range, VI: -0.5 V to 6.5 V; (3)Voltage range applied to any output in the high-impedance or power-off state, VO: -0.5 V to 6.5 V; (4)Voltage range applied to any output in the high or low state, VO: -0.5 V to VCC + 0.5 V; (5)Input clamp current, IIK (VI < 0): -50 mA; (6)Output clamp current, IOK (VO < 0): -50 mA; (7)Continuous output current, IO: ±50 mA; (8)Continuous current through each VCC or GND: ±100 mA; (9)Package thermal impedance, θJA: DGG package: 70℃/W; (10)Storage temperature range, Tstg: -65℃ to 150℃.

Features

SN74LVC16245ADL features: (1)Member of the Texas Instruments Widebus Family; (2)Operates From 1.65 V to 3.6 V; (3)Inputs Accept Voltages to 5.5 V; (4)Max tpd of 4 ns at 3.3 V; (5)Typical VOLP (Output Ground Bounce)<0.8 V at VCC = 3.3 V, TA = 25℃; (6)Typical VOHV (Output VOH Undershoot)>2 V at VCC = 3.3 V, TA = 25℃; (7)Supports Mixed-Mode Signal Operation on All Ports (5-V Input/Output Voltage With 3.3-V VCC); (8)Ioff Supports Partial-Power-Down Mode Operation; (9)Latch-Up Performance Exceeds 250 mA Per JESD 17; (10)ESD Protection Exceeds JESD 22.

Diagrams

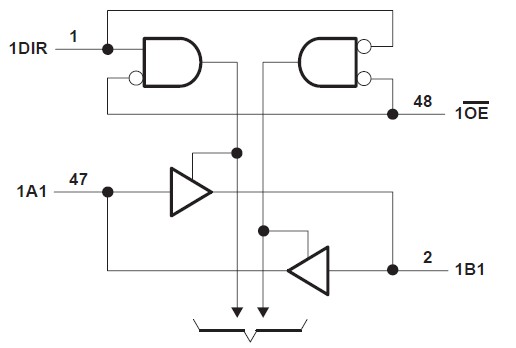

SN74LVC16245ADL logic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74LVC16245ADL
SN74LVC16245ADL

Texas Instruments

Bus Transceivers Tri-State 16-Bit Bus

Data Sheet

0-1: $0.86
1-25: $0.82
25-100: $0.65
100-250: $0.57
SN74LVC16245ADLG4
SN74LVC16245ADLG4

Texas Instruments

Bus Transceivers Low-Voltage 10-Bit FET Bus Switch

Data Sheet

0-1: $0.92
1-25: $0.74
25-100: $0.66
100-250: $0.50
SN74LVC16245ADLR
SN74LVC16245ADLR

Texas Instruments

Bus Transceivers Tri-State 16-Bit Bus

Data Sheet

0-1: $0.88
1-25: $0.71
25-100: $0.58
100-250: $0.51
SN74LVC16245ADLRG4
SN74LVC16245ADLRG4


IC TXRX BUS 16BIT 48-SSOP

Data Sheet

0-1000: $0.41
