Product Summary

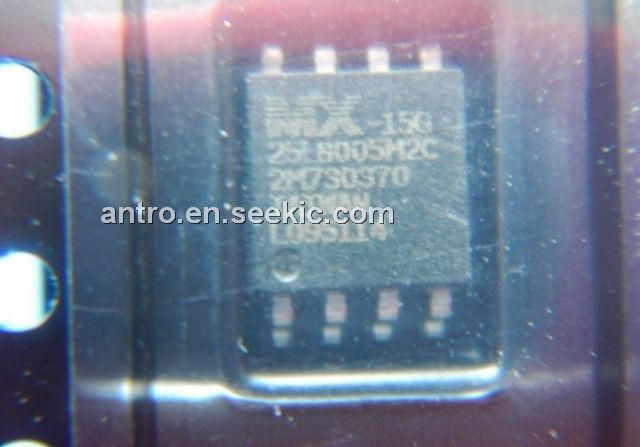

The MX25L8005M2C-15G is a CMOS series flash. It is configured as 1,048,576 x 8 internally. The MX25L8005M2C-15G features a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus. The three bus signals are a clock input (SCLK), a serial data input (SI), and a serial data output (SO). SPI access to the device is enabled by CS# input.
Parametrics
MX25L8005M2C-15G absolute maximum ratings: (1)ambient operating temperature: -40 to 85℃; (2)storage temperature: -55 to 125℃; (3)applied input voltage: -0.5 to 4.6V; (4)applied output voltage: -0.5 to 4.6V; (5)VCC to ground potential: -0.5 to 4.6V.
Features
MX25L8005M2C-15G features: (1)Serial Peripheral Interface (SPI) compatible -- Mode 0 and Mode 3; (2)8,388,608 x 1 bit structure; (3)256 Equal Sectors with 4K byte each; (4)Single Power Supply Operation, 2.7 to 3.6 volt for read, erase, and program operations; (5)Latch-up protected to 100mA from -1V to Vcc +1V; (6)Low Vcc write inhibit is from 1.5V to 2.5V.

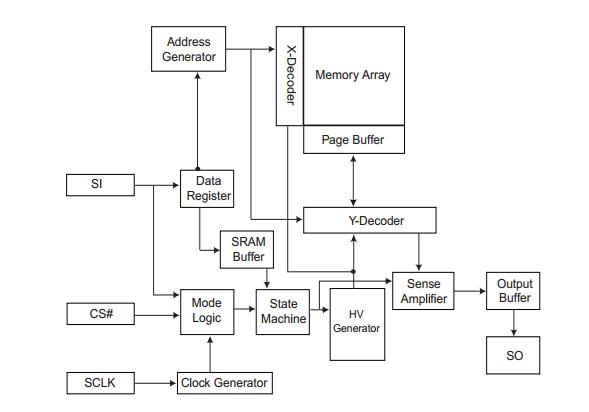

Diagrams
