Product Summary

The MAX8725ETI is a multichemistry battery charger with automatic system power selector. It uses analog inputs to control charge current and voltage, and can be programmed by a host microcontroller (µC) or hardwired. High efficiency is achieved through use of buck topology with synchronous rectification. Its applications include Notebook and Subnotebook Computers, Hand-Held Data Terminals.

Parametrics

MAX8725ETI absolute maximum ratings: (1)DCIN, CSSP, CSSN: -0.3 to 30V; (2)continuous power dissipation: 1666mW; (3)operating temperature range: -40 to 85°C; (4)junction temperature: 150°C; (5)storage temperature range: -60 to 150°C; (6)lead temperature: 300°C.

Features

MAX8725ETI features: (1)±0.5% Accurate Charge Voltage (0°C to +85°C); (2)±3% Accurate Input Current Limiting; (3)±5% Accurate Charge Current; (4)Programmable Charge Current >4A; (5)Automatic System Power-Source Selection; (6)Analog Inputs Control Charge Current and Charge Voltage; (7)Up to 17.65V (max) Battery Voltage; (8)Maximum 28V Input Voltage; (9)Greater than 95% Efficiency.

Diagrams

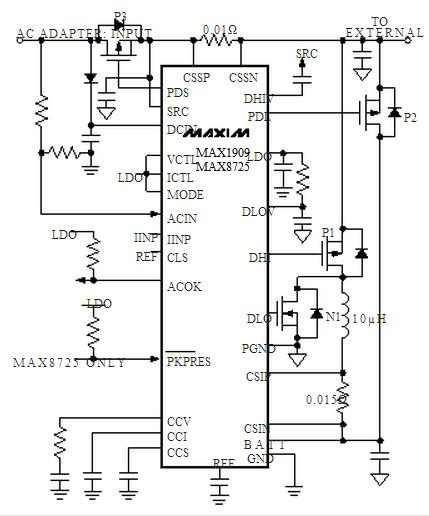

MAX8725ETI operating circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX8725ETI
MAX8725ETI
Maxim Integrated Products
Battery Management
Data Sheet
Negotiable
MAX8725ETI+
MAX8725ETI+
Maxim Integrated Products
Battery Management Multichemistry Battery Charger
Data Sheet
0-1: $8.90
1-25: $5.94
25-50: $4.41
50-100: $4.28
MAX8725ETI+T
MAX8725ETI+T
Maxim Integrated Products
Battery Management Multichemistry Battery Charger
Data Sheet
0-2083: $3.63
2083-2500: $3.63
MAX8725ETI-T
MAX8725ETI-T
Maxim Integrated Products
Battery Management
Data Sheet
Negotiable
