Product Summary

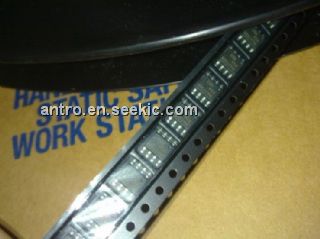

The MAX705ESA+T is a Supervisory Circuit.
Parametrics
MAX705ESA+T absolute maximum ratings: (1)Terminal Voltage (with respect to GND) VCC : -0.3V to 6.0V; (2)All Other Inputs : -0.3V to (VCC + 0.3V); (3)Input Current VCC : 20mA; (4)GND : 20mA; (5)Output Current (all outputs) : 20mA; (6)Continuous Power Dissipation Plastic DIP (derate 9.09mW/℃ above +70℃) : 727mW; (7)SO (derate 5.88mW/℃ above +70℃) : 471mW; (8)μMAX (derate 4.10mW/℃ above +70℃) : 330mW; (9)CERDIP (derate 8.00mW/℃ above +70℃) : 640mW; (10)Operating Temperature Ranges : 40℃ to +85℃; (11)Storage Temperature Range : -65℃ to +160℃; (12)Lead Temperature (soldering, 10sec) : +300℃.
Features
MAX705ESA+T features: (1)μMAX Package: Smallest 8-Pin SO; (2)Guaranteed RESET Valid at VCC = 1V; (3)Precision Supply-Voltage Monitor 4.65V in MAX705/MAX707/MAX813L; (4)200ms Reset Pulse Width; (5)Debounced TTL/CMOS-Compatible Manual-Reset Input; (6)Independent Watchdog Timer—1.6sec Timeout; (7)Active-High Reset Output; (8)Voltage Monitor for Power-Fail or Low-Battery Warning.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX705ESA+T |
Maxim Integrated Products |
Supervisory Circuits Single uPower Supervisor |
Data Sheet |
|
|
||||||||||||
