Product Summary
The LR43 battery is a calculator battery.
Parametrics
LR43 absolute maximum ratings: (1)Nominal Voltage 1,5 V; (2)Capacity 73 mAh, Discharge over 5,62 kΩ at 20℃ to 0,9 V; (3)Internal Resistance Below 20 Ω at 20℃; (4)Operating Temperature 0℃ – 60℃.
Features
LR43 features: (1)Chemical system Zinc / Manganese Dioxide, high drain; (2)Nominal Voltage 1,5 V; (3)Capacity 73 mAh, Discharge over 5,62 kΩ at 20℃ to 0,9 V; (4)Internal Resistance Below 20 Ω at 20℃; (5)Operating Temperature 0℃ – 60℃; (6)Self Discharge Less than 10% per year at 20℃; (7)Weight ~1,36 g.

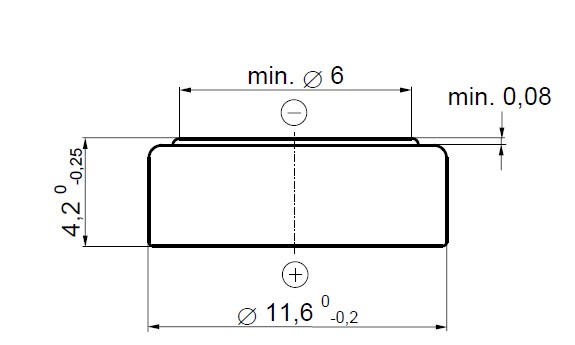

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LR43 |
Renata |
Coin Cell Battery USE 614-LR43BP |
Data Sheet |
Negotiable |
|
||||
|
LR431A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LR431A* |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LR431ALT1G |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LR431ALT1G* |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LR431APLT1G |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LR431APTLT1G |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LR431ATLT1G |
Other |
|
Data Sheet |
Negotiable |
|
||||
