Product Summary

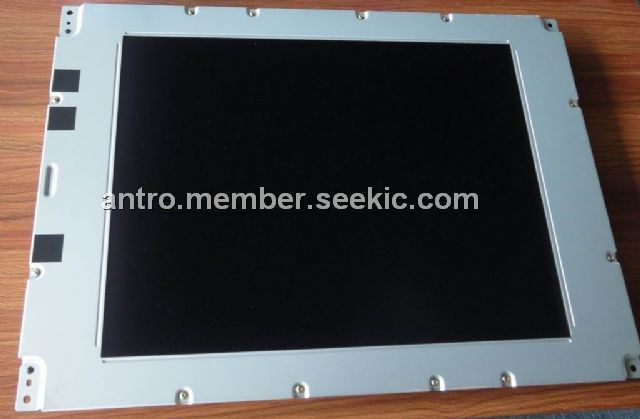

The LM18X94 is a Color STN LCD Module.

Parametrics

LM18X94 absolute maximum ratings: (1)Display size: 45 [17.7] cm [ "]; (2)Dot format (H × V): 1024 × RGB × 768 dot; (3)Dot pitch (H × V): 0.117 × 0.351 mm; (4)Active area (H × V): 359.4 × 269.5 mm; (5)Contrast ratio: <30 : 1>; (6)Response time: <400> ms; (7)Brightness: <200> cd/m2; (8)Backlight type: 8CCFT(D)*2; (9)Duty ratio: 1/384; (10)Logic voltage: 5.0 Vcon V; (11)Power consumption panel: 1 500 mW; (12)Backlight 32 500 mW; (13)Outline dimensions (W × H × D): 480.0 × 343.2 × 30.0 mm; (14)Weight: <3 750> g; (15)Operating temperature: 0 to +40℃; (16)Storage temperature: -25 to +60℃.

Features

LM18X94 features: (1)45 cm [17.7"] XGA format; (2)High brightness (200 cd/m2); (3)HC, SA* technology; (4)Wide viewing angle; (5)High contrast (30:1); (6)CCFT inverter built-in.

Diagrams

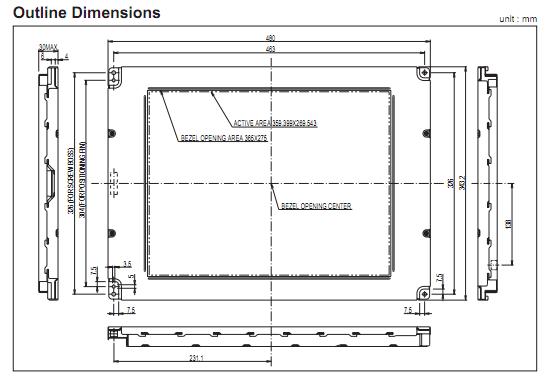

LM18X94 dimensions
