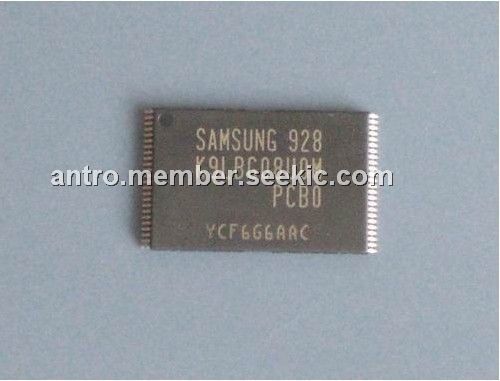

Product Summary

The K9LBG08U0M-PCB0 is a 4G-bit NAND Flash Memory with spare 128M-bit. The device is offered in 2.7V and 3.3V Vcc. Its NAND cell provides the most cost-effective solution for the solid state mass storage market.

Parametrics

K9LBG08U0M-PCB0 absolute maximum ratings: (1)Voltage on any pin relative to VSS: -0.6 to + 4.6 V; (2)Temperature Under Bias: -10 to +125; (3)Storage Temperature: -65 to +150 ℃; (4)Short Circuit Current: 5 mA.

Features

K9LBG08U0M-PCB0 features: (1)Voltage Supply: 2.7V Device(K9G4G08B0A) : 2.5V ~ 2.9V, 3.3V Device(K9G4G08U0A) : 2.7V ~ 3.6V; (2)Organization: Memory Cell Array : (512M + 16M) x 8bit, Data Register : (2K + 64) x 8bit; (3)Automatic Program and Erase: Page Program : (2K + 64)Byte, Block Erase : (256K + 8K)Byte; (4)Memory Cell : 2bit / Memory Cell; (5)Fast Write Cycle Time; (6)Command/Address/Data Multiplexed I/O Port; (7)Hardware Data Protection: Program/Erase Lockout During Power Transitions; (8)Command Register Operation; (9)Unique ID for Copyright Protection; (10)Package: Pb-FREE PACKAGE 48 - Pin TSOP1(12 x 20 / 0.5 mm pitch).

Diagrams

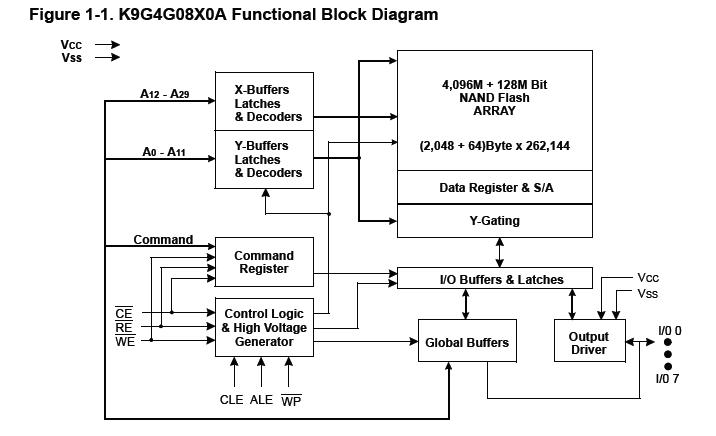

K9LBG08U0M-PCB0 block diagram
