Product Summary
The JS28F128J3D75A is designed as one kind of Numonyx embedded flash memory device that provides improved mainstream performance with enhanced security features. And this device takes advantage of the proven manufacturing experience and is ideal for code and data applications where high density and low cost are required, such as in networking, telecommunications, digital set top boxes, audio recording, and digital imaging.
Parametrics
JS28F128J3D75A absolute maximum ratings: (1)Temperature under Bias Expanded (TA, Ambient):–40 to +85℃;(2)Storage Temperature: -65 to +125℃;(3)VCC Voltage: -2.0 to +5.6V;(4)VCCQ:–2.0 to +5.6V;(5)Voltage on any input/output signal (except VCC, VCCQ): -2.0 to VCCQ(max)+2.0V;(6)ISH Output Short Circuit Current: 100 mA.
Features
JS28F128J3D75A features: (1)Package: 56TSOP; (2)Cell Type: NOR; (3)Density: 128 Mb; (4)Architecture: Sectored; (5)Block Organization: Symmetrical; (6)Typical Operating Supply Voltage: 3 or 3.3V; (7)Sector Size: 128KByte x 128; (8)Support of Page Mode: Yes; (9)Timing Type: Asynchronous; (10)Operating Temperature: -40 to 85℃; (11)Interface Type: Parallel.

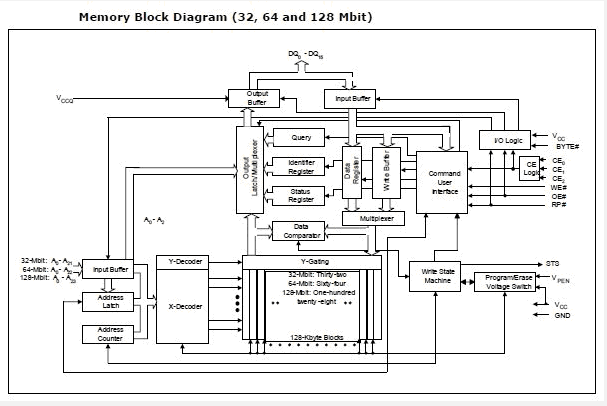

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

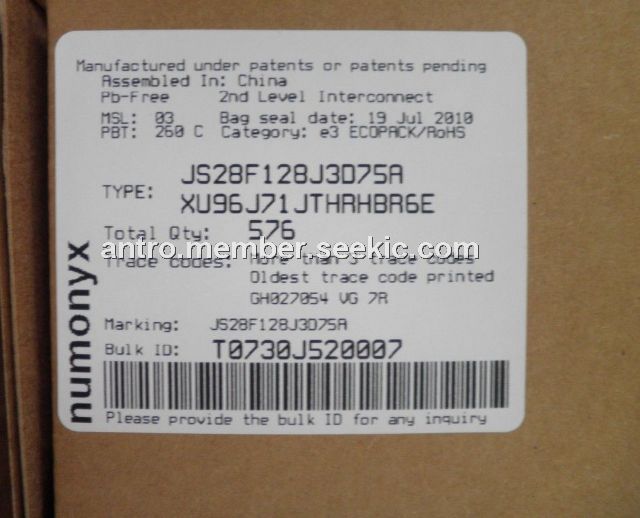

 JS28F128J3D75A |
|
IC FLASH 128MBIT 75NS 56TSOP |
Data Sheet |
Negotiable |
|
||||||
