Product Summary
The ISL6545A is a single synchronous buck pulse-width modulation controller. Its applications include Cable Modems, Set Top Boxes, and DSL Modems, Industrial Power Supplies; General Purpose Supplies, 5V or 12V-Input DC/DC Regulators, Low-Voltage Distributed Power Supplies. Since it can work with either 5V or 12V supplies, this one IC can be used in a wide variety of applications within a system. The ISL6545A (hereafter referred to as “ISL6545x”, except as needed) integrates the control, gate drivers, output adjustment, monitoring and protection functions into a single 8 Ld SOIC or 10 Ld DFN package.
Parametrics
ISL6545A absolute maximum ratings: (1)supply voltage: -0.3 to 15V; (2)boot voltage: -0.3 to 36V; (3)clamp votage: 24V; (4)ESD ratings: 1.5kV; (5)maximum junction temperature: 150℃; (6)maximum storage temperature range: -65 to 150℃.
Features
ISL6545A features: (1)Operates from +5V or +12V Supply Voltage (for bias); (2)Simple Single-Loop Control Design; (3)Fast Transient Response; (4)Lossless, Programmable Overcurrent Protection; (5)Small Converter Size in 8 Ld SOIC or 10 Ld DFN.

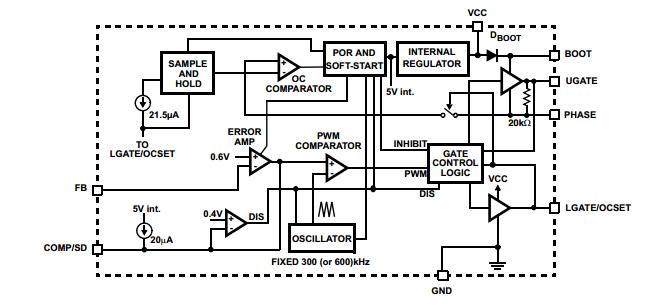

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISL6545A |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
 |
ISL6545ACBZ |
|
IC REG CTRLR BST PWM VM 8-SOIC |
Data Sheet |
|
|
||||||||||
|
ISL6545ACBZ-TS2698 |
|
IC REG CTRLR BST PWM VM 8-SOIC |
Data Sheet |
|
|
||||||||||
 |
ISL6545ACRZ |
|
IC REG CTRLR BST PWM VM 10-DFN |
Data Sheet |
|
|
||||||||||
|
ISL6545ACBZS2698 |
|
IC REG CTRLR BST PWM VM 8-SOIC |
Data Sheet |
|
|
||||||||||
|
ISL6545ACBZ-T |
|
IC REG CTRLR BST PWM VM 8-SOIC |
Data Sheet |
|
|
||||||||||
|
ISL6545ACRZ-T |
|
IC REG CTRLR BST PWM VM 10-DFN |
Data Sheet |
|
|
||||||||||
|
ISL6545AIBZ |
|
IC REG CTRLR BST PWM VM 8-SOIC |
Data Sheet |
|
|
||||||||||
