Product Summary
The CR2025 is a 3-Volt Lithium Battery.
Parametrics
CR2025 absolute maximum ratings: (1)Nominal Voltage: 3.0 Volts; (2)Typical Capacity: 163 mAh (to 2.0 volts)(Rated at 15K ohms at 21℃)
Features
CR2025 features: (1)Classification: Lithium Coin; (2)Chemical System: Lithium / Manganese Dioxide (Li/MnO2); (3)Designation: ANSI / NEDA-5003LC, IEC-CR2025; (4)Nominal Voltage: 3.0 Volts; (5)Typical Capacity: 163 mAh (to 2.0 volts)(Rated at 15K ohms at 21℃); (6)Typical Weight: 2.6 grams (0.08 oz.); (7)Typical Volume: 0.8 cubic centimeters (0.05 cubic inch); (8)Max Rev Charge: 1 microampere; (9)Energy Density: 176 milliwatt hr/g, 616 milliwatt hr/cc; (10)Typical Li Content: 0.078 grams (0.0028 oz.); (11)UL Listed: MH12454.

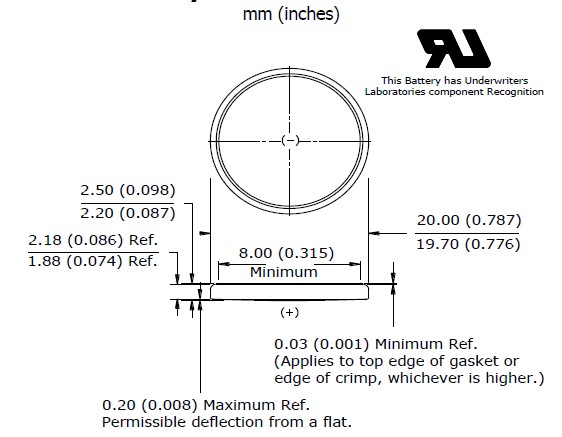

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CR2025 |
Panasonic Battery |
Coin Cell Battery 3V 20 X 2.5 MM 150mA |
Data Sheet |
Negotiable |
|
||||
 |
CR2025 250/CASE |
Renata |
Coin Cell Battery 3V LITH 20X2.5 |
Data Sheet |
Negotiable |
|
||||
|
CR2025 MFR AH |
Renata |
Coin Cell Battery 3V 21.0 x 3.1mm 2 PIN HORZ 165mAh |
Data Sheet |
Negotiable |
|
||||
|
CR2025 MFR FH |
Renata |
Coin Cell Battery 3V 2-PIN HORZ 165mAh 20.2 X 3.3mm |
Data Sheet |
Negotiable |
|
||||
|
CR2025 MFR FH1 |
Renata |
Coin Cell Battery 3V 2-PIN HORZ 165mAh 20 x 3.3mm |
Data Sheet |
Negotiable |
|
||||
|
CR2025 MFR RH |
Renata |
Coin Cell Battery 3V 3-PIN HORZ 165mAh 20.2 x 4.85mm |
Data Sheet |
Negotiable |
|
||||
|
CR2025 MFR RV |
Renata |
Coin Cell Battery 3V 3-PIN VERT 165mAh 20.0 x 2.5mm |
Data Sheet |
Negotiable |
|
||||
|
CR2025 MFR.TS |
Renata |
Coin Cell Battery 3V 20 x 2.5mm 165mAh |
Data Sheet |
Negotiable |
|
||||
