Product Summary

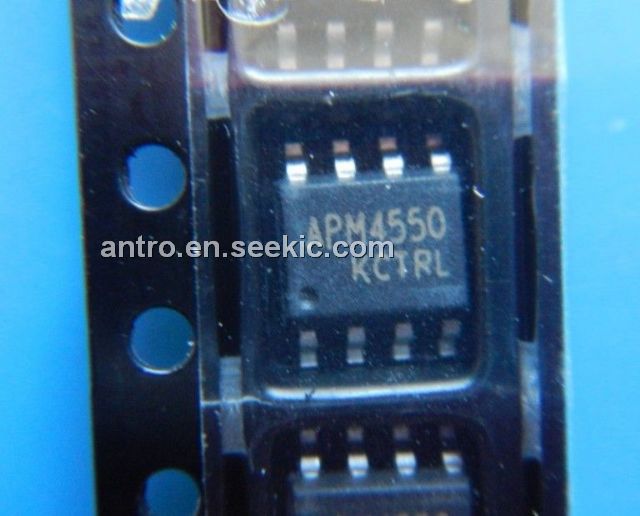

The APM4550KC is a dual enhancement mode MOSFET. Its applications include power management in notebook computer, portable equipment and battery powered systems.

Parametrics

APM4550KC absolute maximum rating: (1)drain-source voltage: 30V; (2)gate-source voltage: ±20V; (3)continuous drain curren: 7A; (4)diode continuous forward current: 2.5A; (5)maximum junction temperature: 150℃; (6)storage temperature range: -55 to 150℃.

Features

APM4550KC features: (1)N-channel, RDS=4.5V; (2)Super high dense cell design; (3)reliable and rugged; (4)lead free available.

Diagrams

APM4550KC pin connection
