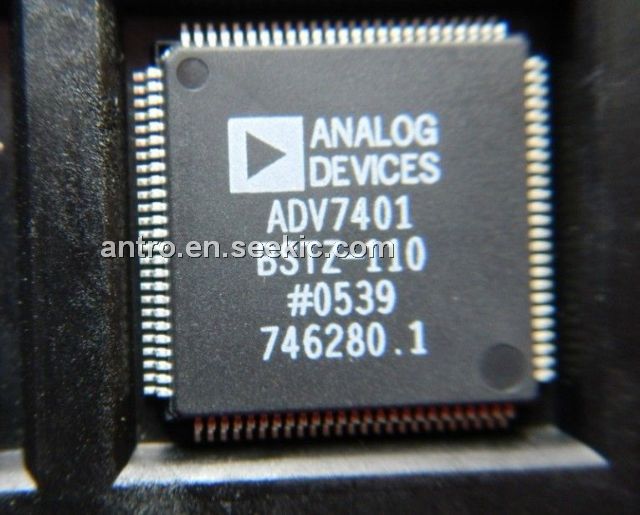

The ADV7401BSTZ-110 is a 10-bit integrated, multiformat SDTV/HDTV video decoder and RGB graphics digitizer. Its applications include LCD/DLP™ rear projection HDTVs, PDP HDTVs, CRT HDTVs, LCD/DLP front projectors, LCD TV (HDTV ready), HDTV STBs with PVR, Hard-disk-based video recorders, Multiformat scan converters, DVD recorders with progressive scan input support, AVR receiver. The ADV7401BSTZ-110 supports the conversion of PAL, NTSC, and SECAM standards in the form of composite or S-video into a digital ITU-R BT.656 format.
Parametrics
ADV7401BSTZ-110 absolute maximum ratings: (1)AVDD to AGND: 4V; (2)DVDD to DGND: 2.2V; (3)PVDD to AGND: 2.2V; (4)DVDDIO to AVDD: -0.3 to 0.3V; (5)digital input voltage to DGND: -0.3 to DVDDIO +0.3V.
Features
ADV7401BSTZ-110 features: (1)12 analog input channel mux; (2)SCART fast blank support; (3)Internal antialias filters; (4)NTSC/PAL/SECAM color standards support; (5)525p-/625p-component progressive scan support; (6)720p-/1080i-component HDTV support; (7)Digitizes RGB graphics up to 1280 × 1024 @ 75 Hz (SXGA).
