Product Summary

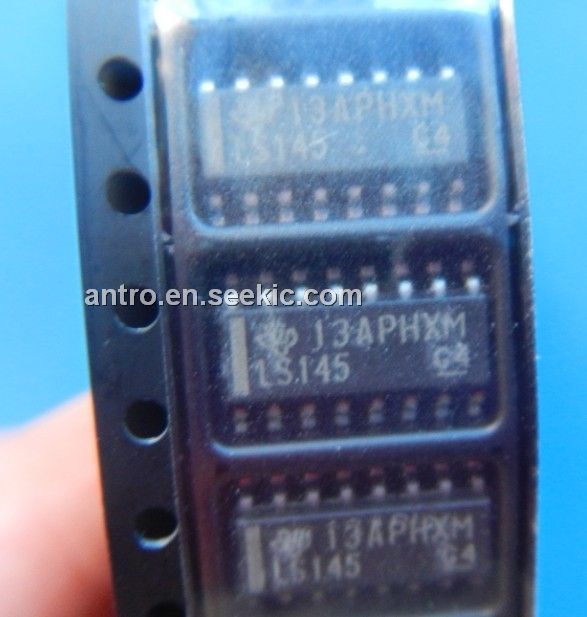

The SN74LS145D is a 1-of-10 decoder. It is designed to accept BCD inputs and provide appropriate outputs to drive 10-digit incandescent displays. All outputs remain off for all invalid binary input conditions. The SN74LS145D is designed for use as indicator/relay drivers or as an open-collector logic circuit driver.

Parametrics

SN74LS145D absolute maximum ratings: (1)VCC: 5.25V; (2)operating ambient temperature range: 25 to 70℃; (3)output voltage-high: 15V; (4)output current-low: 24mA.

Features

SN74LS145D features: (1)input high voltage: 2V; (2)input low voltage: 0.8V; (3)input clamp diode voltage: -1.5V; (4)output high current: 250μA; (5)output low voltage: 0.4V; (6)input high current: 20μA.

Diagrams

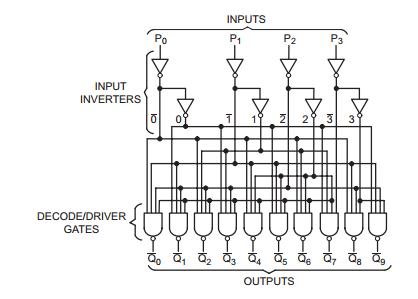

SN74LS145D block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SN74LS145D
SN74LS145D

Texas Instruments

Encoders, Decoders, Multiplexers & Demultiplexers BDC to Decimal

Data Sheet

0-1: $0.65
1-25: $0.59
25-100: $0.52
100-250: $0.46
SN74LS145DE4
SN74LS145DE4

Texas Instruments

Encoders, Decoders, Multiplexers & Demultiplexers BCD-To-Decimal Decoders/Drivers

Data Sheet

0-1: $0.65
1-25: $0.53
25-100: $0.48
100-250: $0.42
SN74LS145DR
SN74LS145DR

Texas Instruments

Encoders, Decoders, Multiplexers & Demultiplexers BCD-To-Decimal Decoders/Drivers

Data Sheet

0-1: $0.55
1-25: $0.44
25-100: $0.40
100-250: $0.35
SN74LS145DG4
SN74LS145DG4

Texas Instruments

Encoders, Decoders, Multiplexers & Demultiplexers BCD To Decimal Decoders Drivers

Data Sheet

0-1: $0.65
1-25: $0.53
25-100: $0.48
100-250: $0.42
SN74LS145DRE4
SN74LS145DRE4

Texas Instruments

Encoders, Decoders, Multiplexers & Demultiplexers BCD-To-Decimal Decoders/Drivers

Data Sheet

0-1750: $0.26
1750-2000: $0.24
2000-2500: $0.24
2500-5000: $0.23
SN74LS145DRG4
SN74LS145DRG4

Texas Instruments

Encoders, Decoders, Multiplexers & Demultiplexers BCD To Decimal Decoders Drivers

Data Sheet

0-1750: $0.26
1750-2000: $0.24
2000-2500: $0.24
2500-5000: $0.23
