Product Summary
The MC9328MX21DVK is a microprocessor. It has demonstrated leadership in the portable handheld market. Building on the success of the MX (Media Extensions) series, the MC9328MX21DVK provides a leap in performance with an ARM926EJ-S microprocessor core that provides native security and accelerated Java support in addition to highly integrated system functions. The MC9328MX21DVK specifically address the needs of the smartphone and portable product markets with their intelligent integrated peripherals, advanced processor core, and power management capabilities.
Parametrics
MC9328MX21DVK absolute maximum ratings: (1)Supply voltage Vdd: -0.3 to 3.3 V; (2)Maximum operating temperature range of i.MX21 TA: - 40 / -30 / 0 to 70 / 85 ℃; (3)Storage temperature Test: -55 to 150 ℃.
Features
MC9328MX21DVK features: (1)ARM926EJ-S Core Complex; (2)enhanced Multimedia Accelerator (eMMA); (3)Optional Security System; (4)Display and Video Modules: LCD Controller (LCDC); Smart LCD Controller (SLCDC); CMOS Sensor Interface (CSI); (5)Bus Master Interface (BMI); (6)Wireless Connectivity: Fast Infra-Red Interface (Fast IR); (7)Memory Expansion and I/O Card Support: Two Multimedia Card and Secure Digital (MMC/SD) Host Controller Modules.

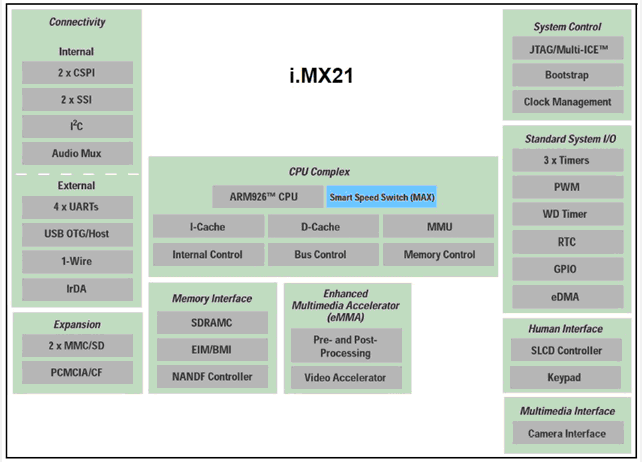

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC9328MX21DVK |
Freescale Semiconductor |
Microprocessors (MPU) DB I.MX21 PB-FR |
Data Sheet |
|
|
||||||||||
 |
MC9328MX21DVKR2 |
Freescale Semiconductor |
Microprocessors (MPU) DB I.MX21 PB-FR |
Data Sheet |
|
|
||||||||||
