Product Summary

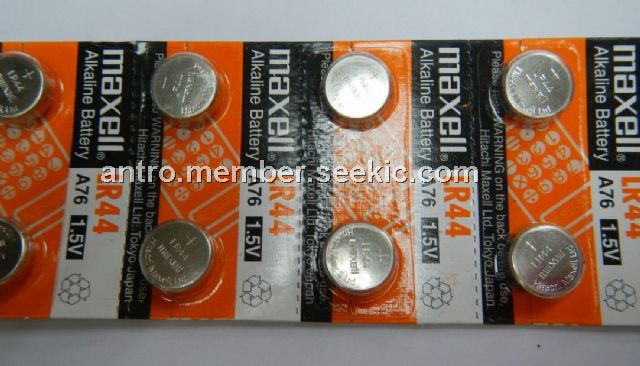

The LR44 battery is a Button Cell Battery.
Parametrics
LR44 absolute maximum ratings: (1)Nominal Voltage 1,5 V; (2)Capacity 73 mAh, Discharge over 5,62 kΩ at 20℃ to 0,9 V; (3)Internal Resistance Below 20 Ω at 20℃; (4)Operating Temperature 0℃ – 60℃.
Features
LR44 features: (1)Chemical system Zinc / Manganese Dioxide, high drain; (2)Nominal Voltage 1,5 V; (3)Capacity 73 mAh, Discharge over 5,62 kΩ at 20℃ to 0,9 V; (4)Internal Resistance Below 20 Ω at 20℃; (5)Operating Temperature 0℃ – 60℃; (6)Self Discharge Less than 10% per year at 20℃; (7)Weight ~1,36 g.

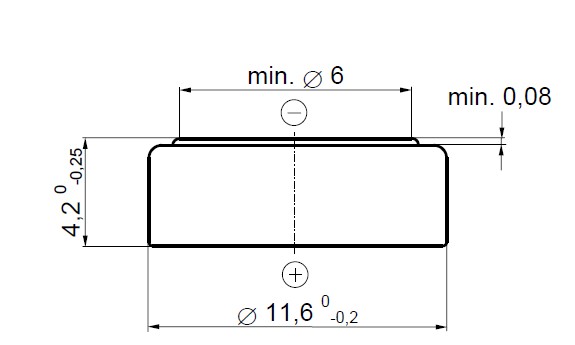

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LR44.CU2 |
Renata |
Coin Cell Battery 1.5V 11.6 x 5.4mm 115mAh 2PK |
Data Sheet |
Negotiable |
|
||||
|
LR44.CU2 0%HG |
Renata |
Coin Cell Battery 1.5V 11.6 x 5.4mm 115mAh 2PK |
Data Sheet |
Negotiable |
|
||||
