Product Summary
The LM741H is a general purpose operational amplifier which features improved performance over industry standards like the LM709. The LM741H is direct, plug-in replacements for the 709C, LM201, MC1439 and 748 in most applications. The LM741H offers many features which make its application nearly foolproof: overload protection on the input and output, no latch-up when the common mode range is exceeded, as well as freedom from oscillations.
Parametrics
LM741H absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Power Dissipation: 500 mW; (3)Differential Input Voltage: ±30V; (4)Input Voltage: ±15V; (5)Output Short Circuit Duration: Continuous; (6)Operating Temperature Range: -55℃ to +125℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Junction Temperature: 150℃; (9)Soldering Information, N-Package (10 seconds): 260℃; J- or H-Package (10 seconds): 300℃; M-Package Vapor Phase (60 seconds): 215℃; Infrared (15 seconds): 215℃; (10)ESD Tolerance: 400V.
Features
LM741H features: (1)Input Offset Voltage, RS ≤ 10 kΩ 1.0 to 5.0mV; RS ≤ 10 kΩ: 6.0 to 7.5mV; (2)Input Offset Voltage Adjustment Range, TA = 25℃, VS = ±20V: ±15 mV; (3)Input Offset Current, TA = 25℃: 20 to 200 nA; TAMIN ≤ TA ≤ TAMAX: 85 to 500 nA; (4)Average Input Offset Current Drift: 0.5 nA/℃; (5)Input Bias Current, TA = 25℃: 80 to 500nA; TAMIN ≤ TA ≤ TAMAX: 1.5μA; (6)Input Resistance, TA = 25℃, VS = ±20V: 0.3 to 2.0MW; (7)Input Voltage Range, TAMIN ≤ TA ≤ TAMAX: ±12 to ±13 V.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

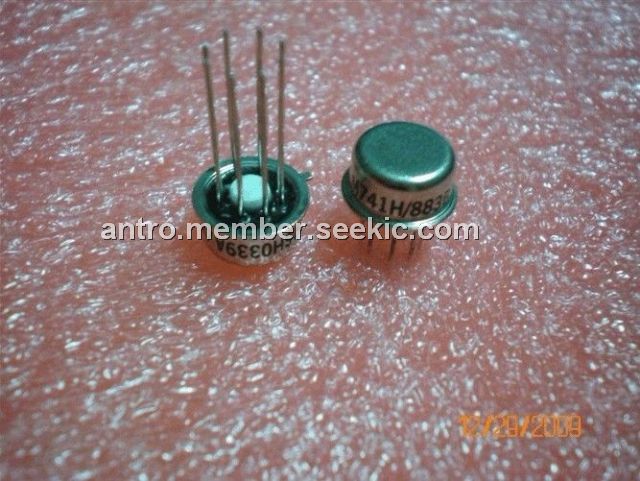

 LM741H |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
 |
LM741H/883 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
LM741H/NOPB |
National Semiconductor (TI) |
Operational Amplifiers - Op Amps |
Data Sheet |
|
|
||||||||||||
