Product Summary
The ISL6614CB is a dual advanced synchronous rectified buck MOSFET driver with protection features. It is specifically designed to drive two independent power channels in a Multi-Phase interleaved buck converter topology. These drivers combined with HIP63xx or ISL6614CB Multi-Phase Buck PWM controllers and N-Channel MOSFETs form complete core-voltage regulator solutions for advanced microprocessors.
Parametrics
ISL6614CB absolute maximum ratings: (1)supply voltage: 15V; (2)BOOT voltage: 36V; (3)input voltage: GND-0.3 to 7V; (4)maximum junction temperature: 150℃; (5)maximum storage temperature range: -65 to 150℃; (6)maximum lead temperature: 300℃.
Features
ISL6614CB features: (1)Adjustable Gate Voltage (5V to 12V) for Optimal Efficiency; (2)Internal Bootstrap Schottky Diode; (3)Bootstrap Capacitor Overcharging Prevention; (4)Supports High Switching Frequency (up to 1MHz); (5)Three-State PWM Input for Output Stage Shutdown; (6)Pre-POR Overvoltage +Protection; (7)VCC Undervoltage Protection; (8)Over Temperature Protection (OTP) with 42°C Hysteresis; (9)Expandable Bottom Copper Pad for Enhanced Heat Sinking.

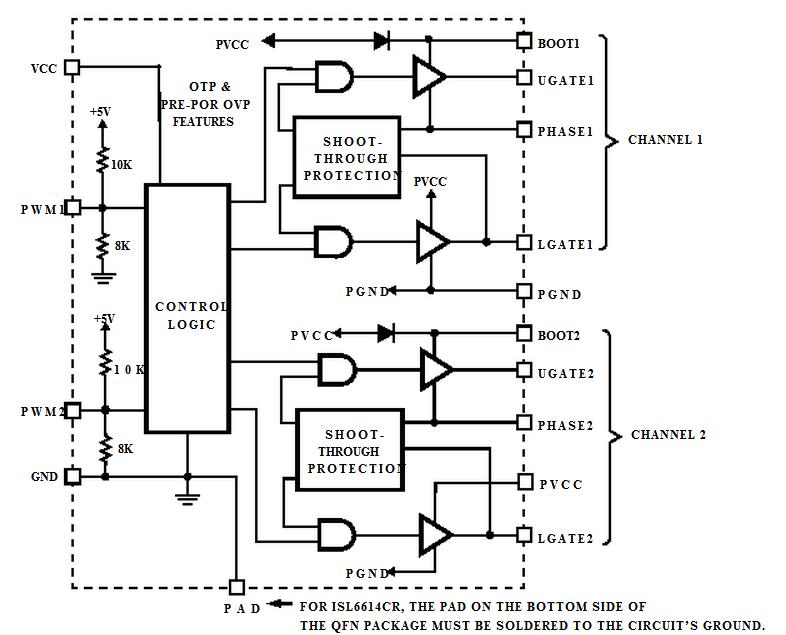

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

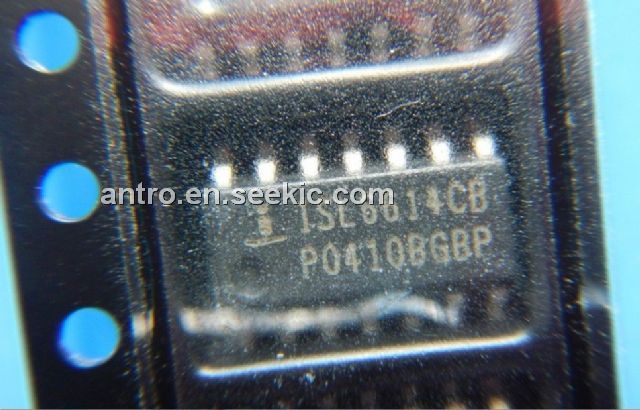

 ISL6614CB |
|
IC DRIVER MOSF DUAL SYNC 14SOIC |
Data Sheet |
Negotiable |
|
||||||
|
ISL6614CB-T |
|
IC DRIVER DUAL SYNC BUCK 14-SOIC |
Data Sheet |
Negotiable |
|
||||||
|
ISL6614CBZA-T |
|
IC DRIVER DUAL SYNC BUCK 14-SOIC |
Data Sheet |
|
|
||||||
|
ISL6614CBZR5214 |
|
IC DRVR DUAL SYNC BUCK 14-SOIC |
Data Sheet |
|
|
||||||
|
ISL6614CBZ |
|
IC DRIVER MOSF DUAL SYNC 14SOIC |
Data Sheet |
|
|
||||||
|
ISL6614CBZA |
|
IC DRIVER DUAL SYNC BUCK 14-SOIC |
Data Sheet |
|
|
||||||
|
ISL6614CBZR5238 |
|
IC DRVR DUAL SYNC BUCK 14-SOIC |
Data Sheet |
|
|
||||||
|
ISL6614CBZ-T |
|
IC DRIVER DUAL SYNC BUCK 14-SOIC |
Data Sheet |
|
|
||||||
