Product Summary

The AT070TN84 is an Innolux Original LCD.

Parametrics

AT070TN84 absolute maximum ratings: (1)Power voltage VCC: -0.3 to 6.0 V; VLED: 5.5 V; (2)Input signal voltage VI: -0.3 to 6.3 V; (3)Operation Temperature TOP: -20 to 70 ℃; (4)Storage Temperature TST: -30 to 80 ℃.

Features

AT070TN84 specifications: (1)LCD size: 7.0 inch(Diagonal); (2)Driver element: a-Si TFT active matrix; (3)Resolution: 800 × 3(RGB) × 480; (4)Display mode: Normally white, Transmissive; (5)Dot pitch: 0.0635(W) × 0.1905(H) mm; (6)Active area: 152.4 (W) × 91.44 (H) mm; (7)Module size: 165(W) × 104(H) × 5.5(D) mm Note1; (8)Surface treatment: Anti-Glare; (9)Color arrangement: RGB-stripe; (10)Interface: Digital(TTL); (11)Backlight power consumption: 2.500W (Typ.); (12)Panel power consumption: 0.825W (Typ.); (13)Weight: 130g(Typ.).

Diagrams

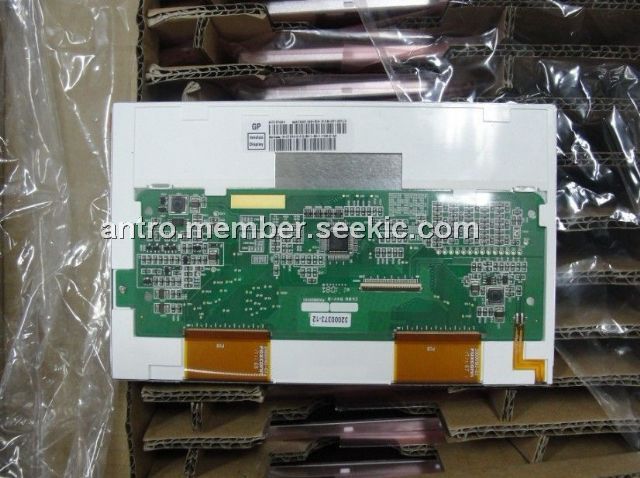

AT070TN84 diagram
