Product Summary

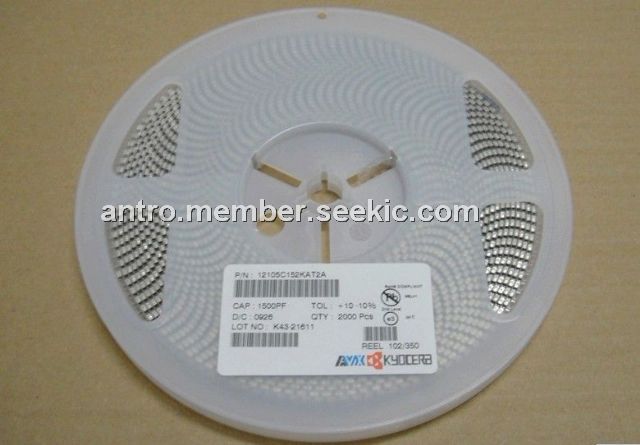

The 12105C152KAT2A is a ceramic chip capacitor.

Parametrics

12105C152KAT2A specifications: (1)Size: 1210; (2)Voltage: 50V; (3)Dielectric: X7R; (4)Capacitance: 1500PF; (5)Tolerance: ±10%; (6)Failure Rate: N/A; (7)Terminations: Plated Ni and Sn; (8)Packaging: 7 Reel; (9)Special Code: A = Std.

Features

12105C152KAT2A electrical characteristics: (1)Operating Temperature Range: -55℃ to +125℃; (2)Capacitance: Within specified tolerance; (3)Dissipation Factor: ≤ 2.5% for ≥ 50V DC rating; ≤ 3.0% for 25V DC rating; ≤ 3.5% for 16V DC rating; ≤ 5.0% for ≤ 10V DC rating; (4)Insulation Resistance: 100,000MΩ or 1000MΩ - μF, whichever is less; (5)Dielectric Strength: No breakdown or visual defects.

Diagrams

12105C152KAT2A dimensions

1210
